Circuit/전자회로
18) Op Amp2 [라자비 전자회로]
Return
2021. 10. 11. 01:43

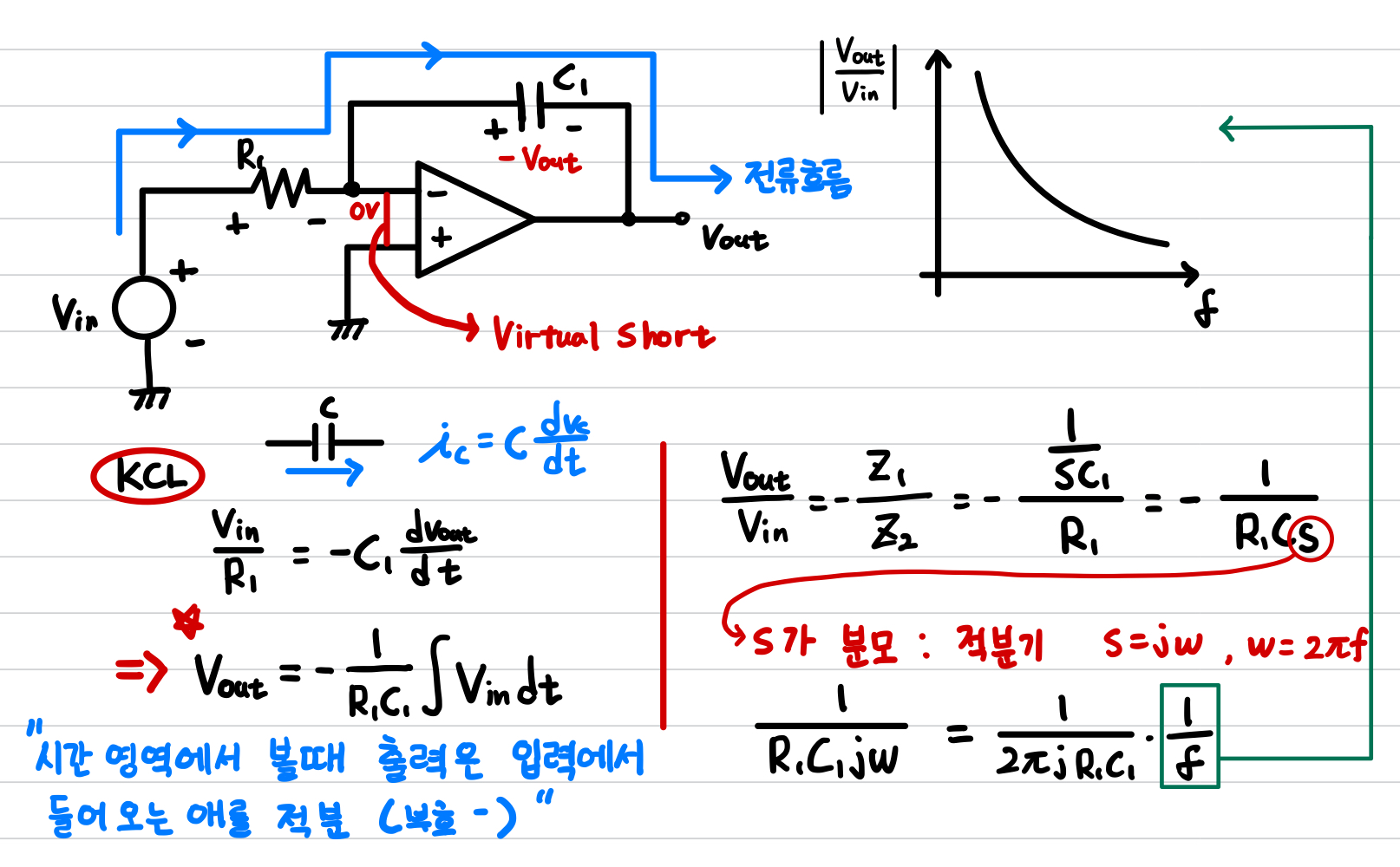

- Integrator (적분기)
- Integrator with Pulse input

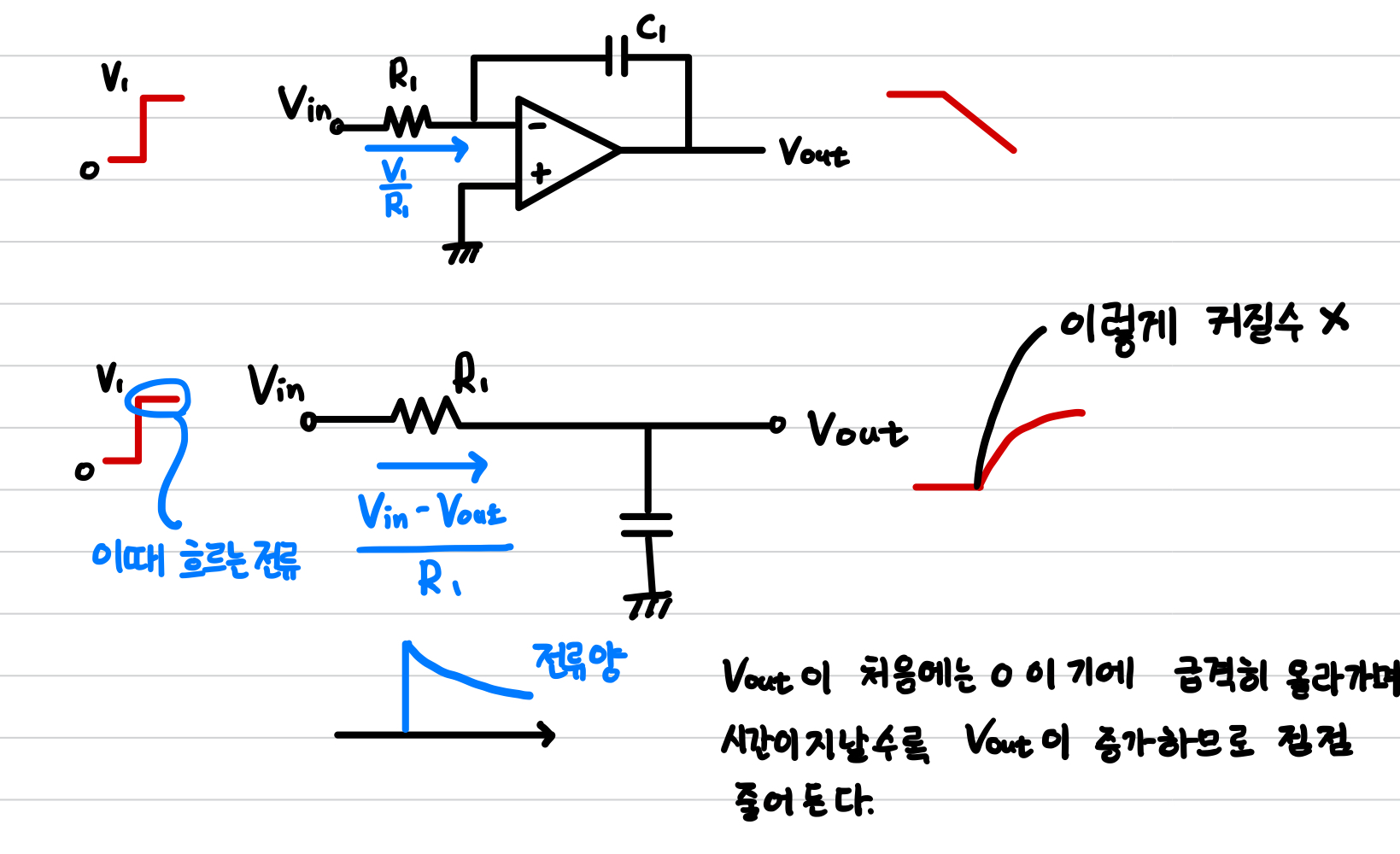

- Comparison of Integrator and RC Lowpass Filter

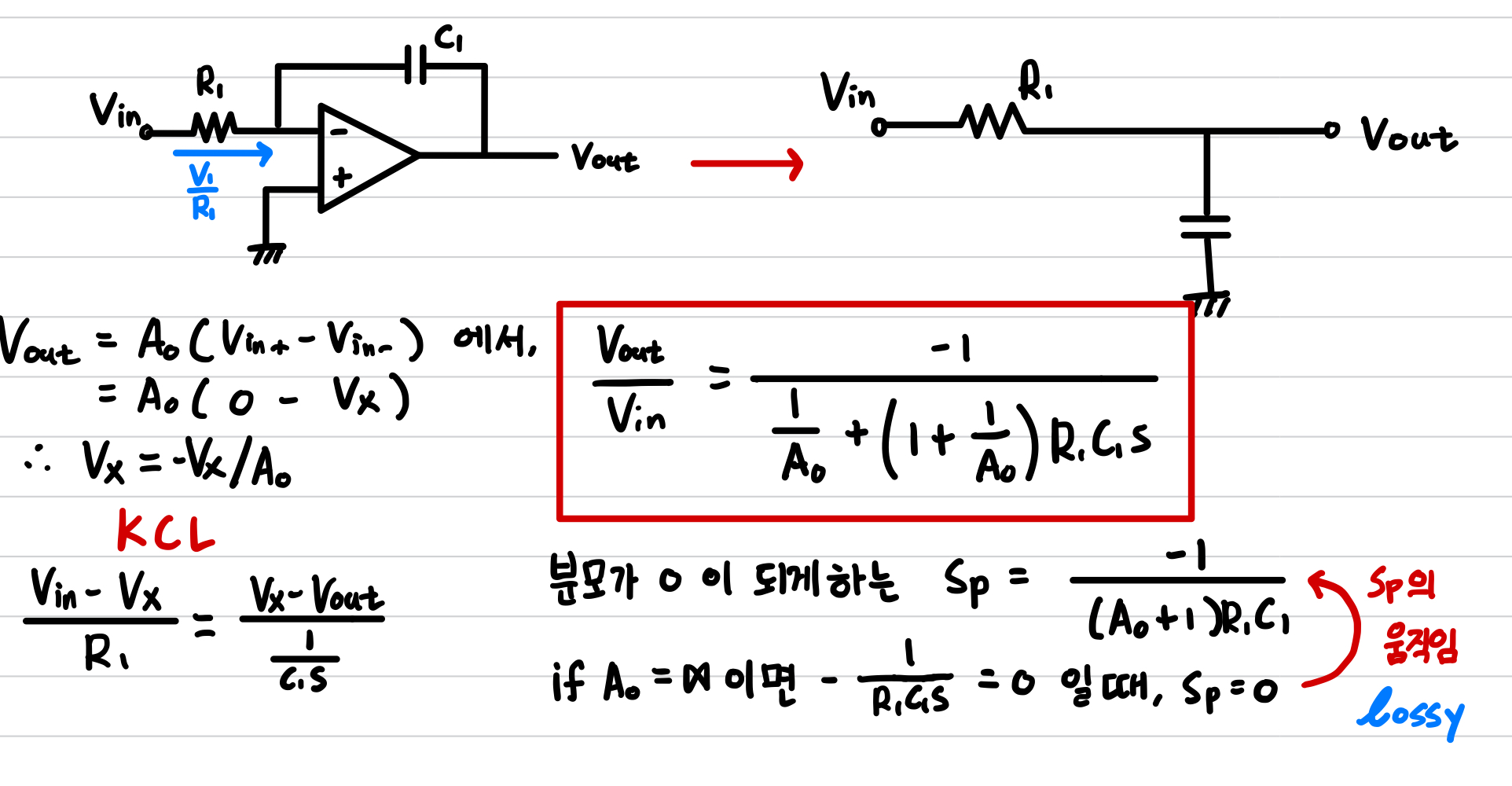

- Lossy Integrator

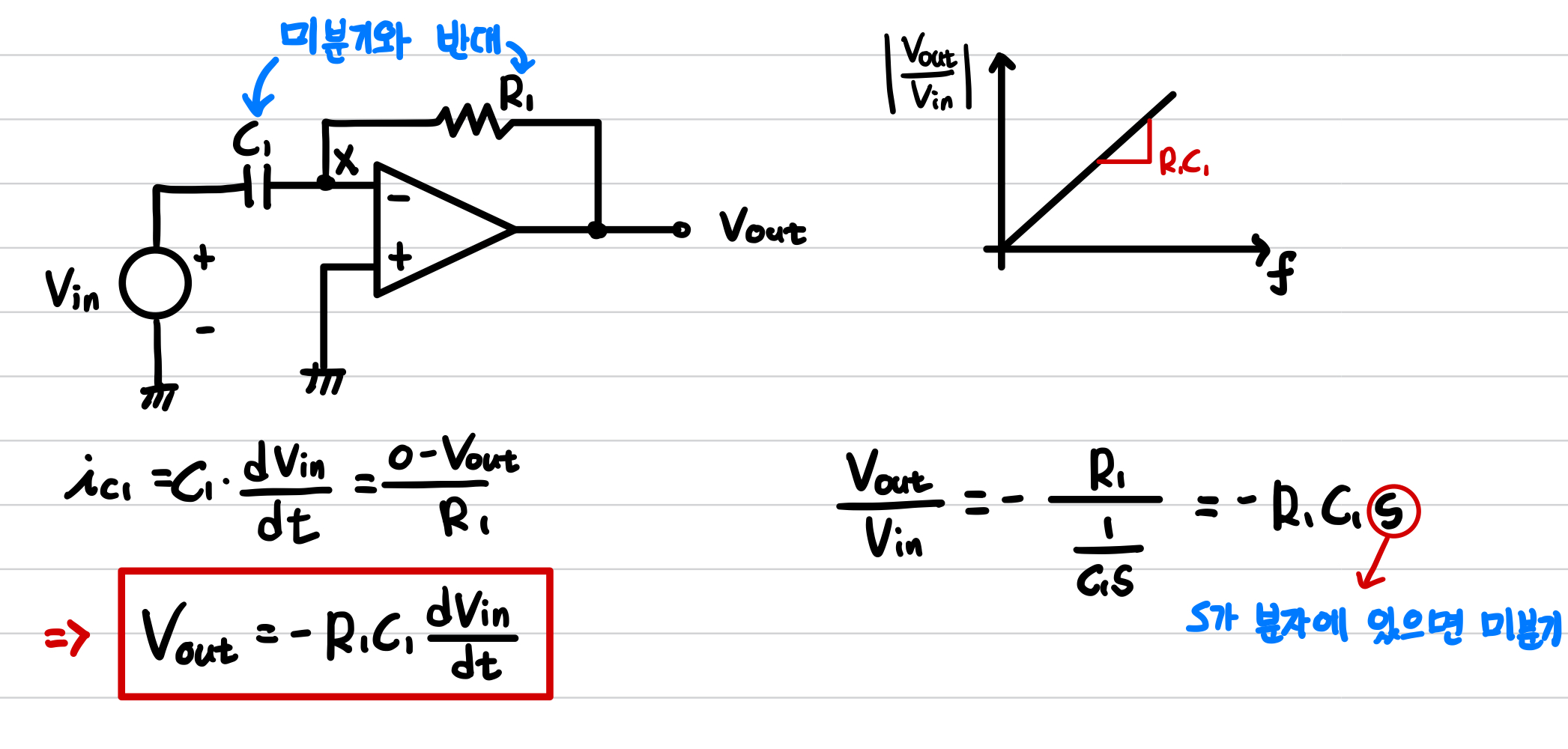

- Differentiator (미분기)

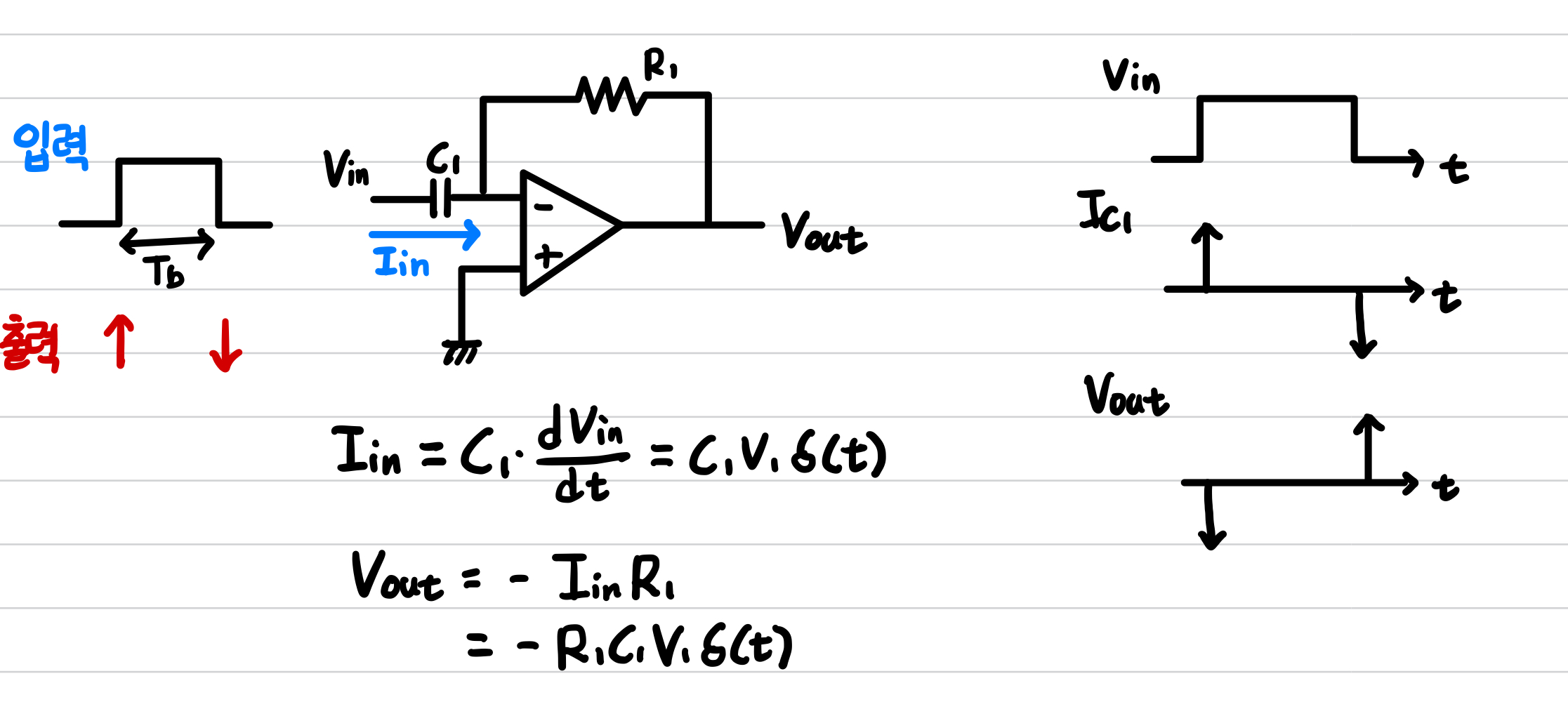

- Differentiator with Pulse Input
- Lossy Differentiator
-Op Amp with General Impedances

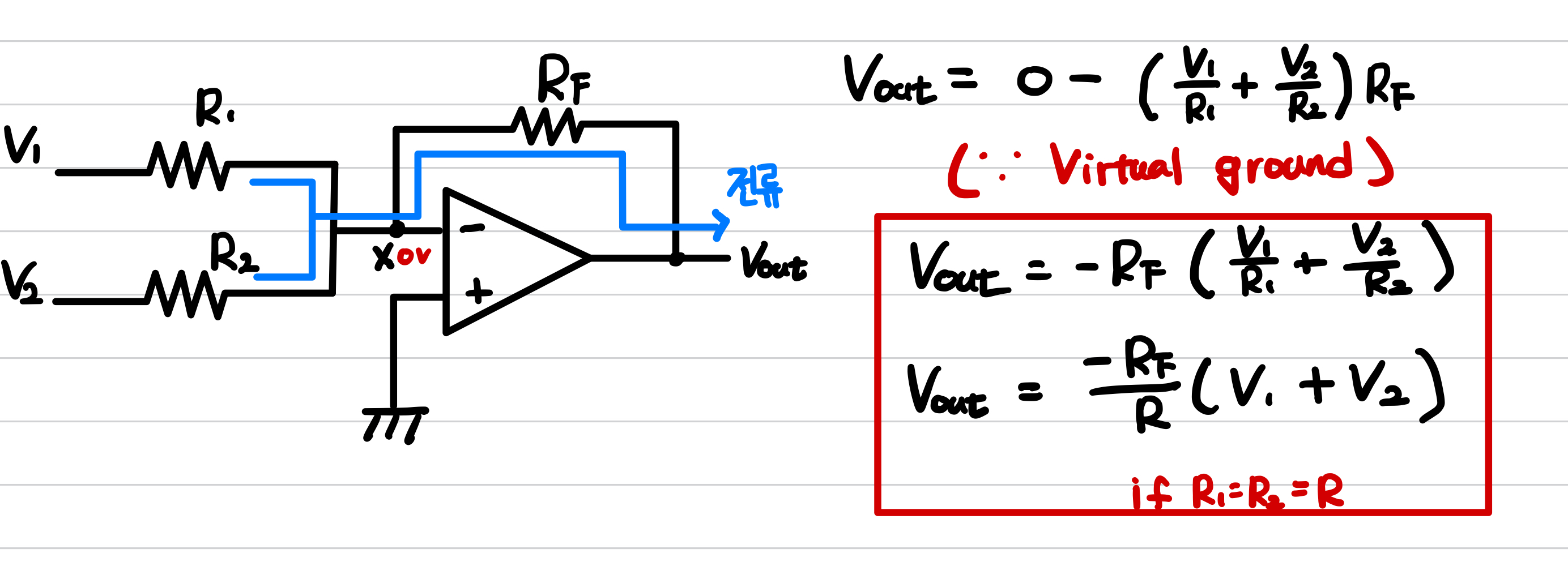

-Voltage Adder
