19) Op Amp3 [라자비 전자회로]
Return
2021. 10. 11. 01:47
- Half-wave Rectifier Review

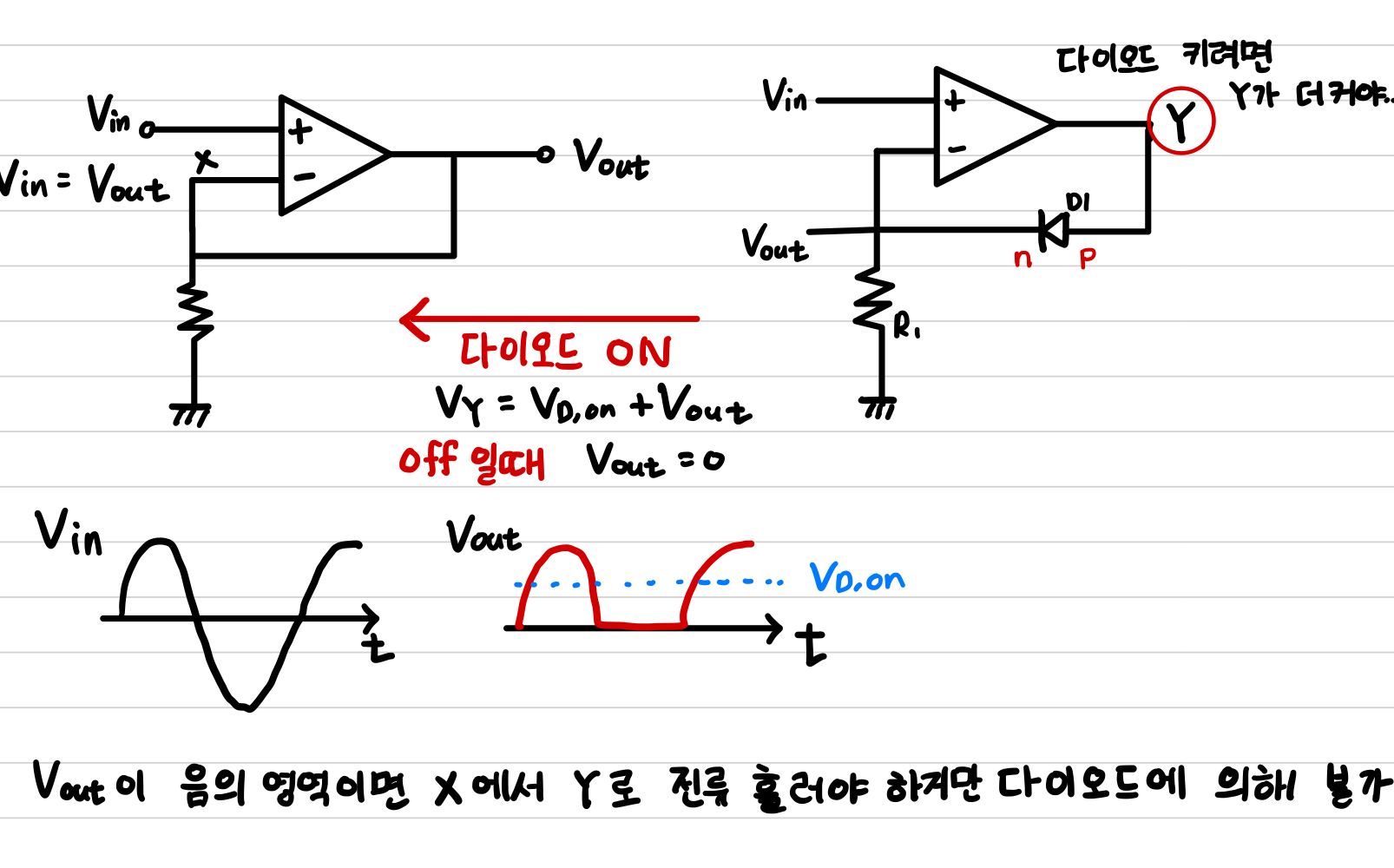

- Precision Rectifier
-Inverting Precision Rectifier

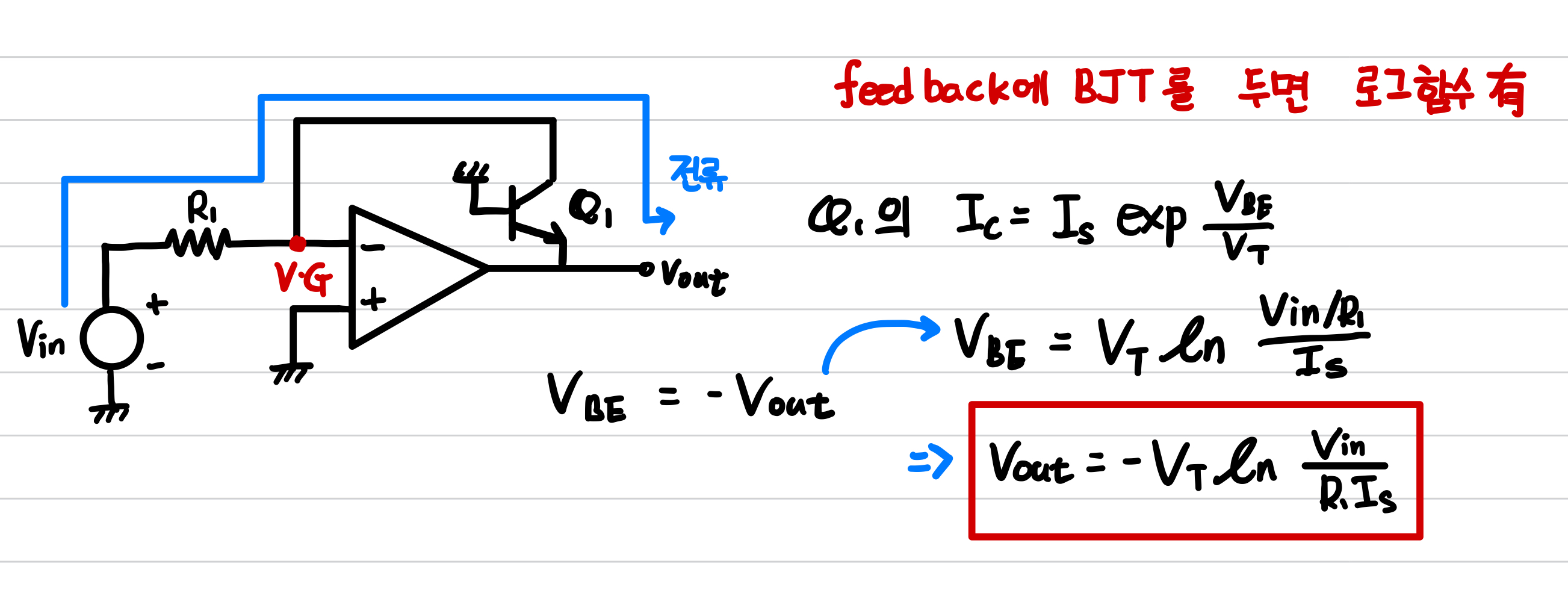

- Logarithmic Amplifier

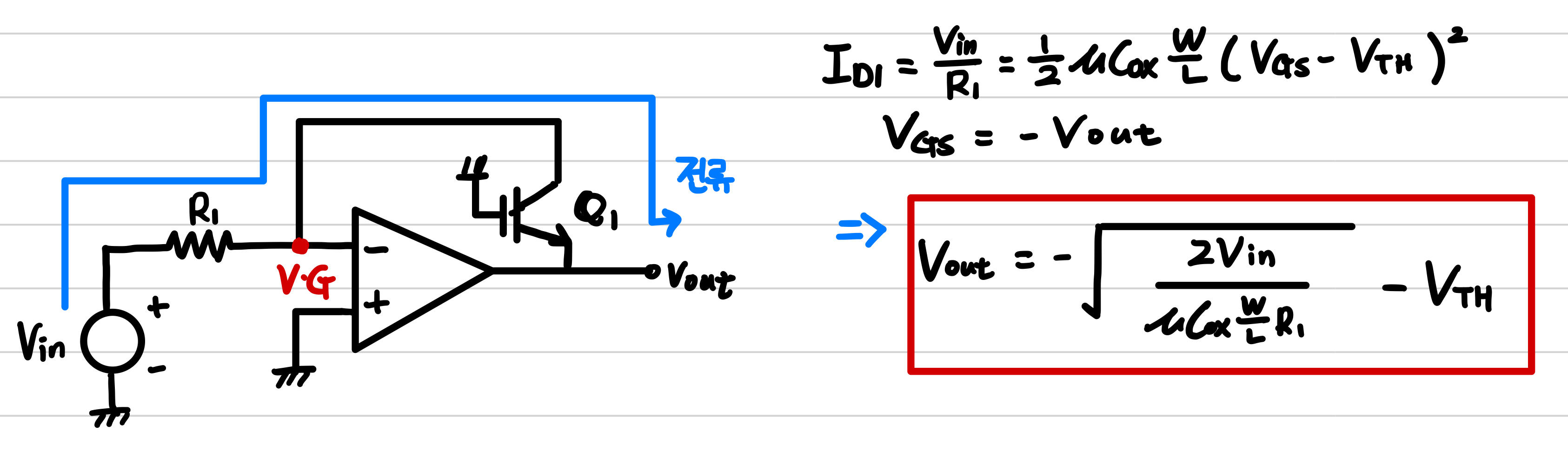

- Square root amplifier

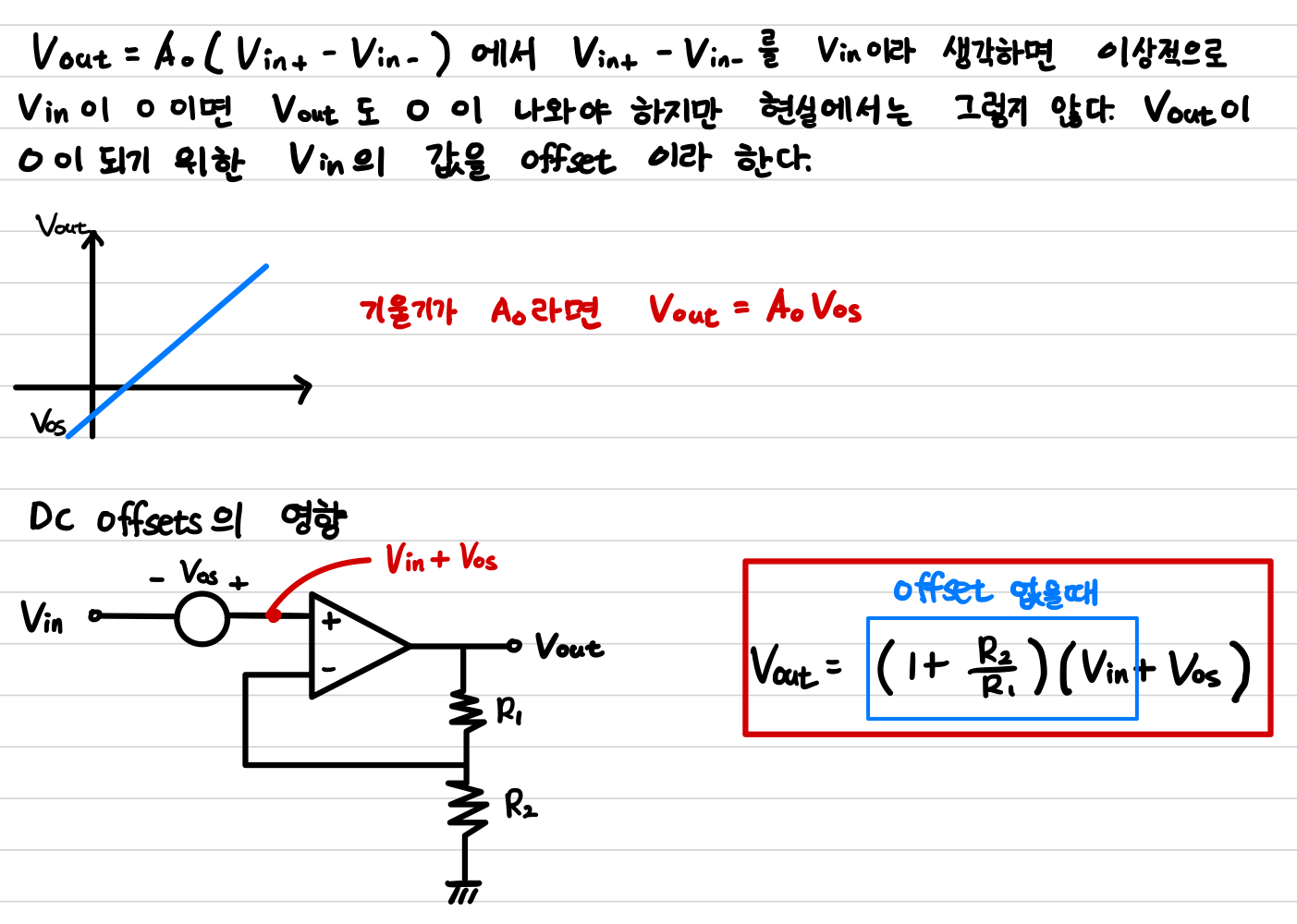

- Op Amp Nonidealities : DC Offsets

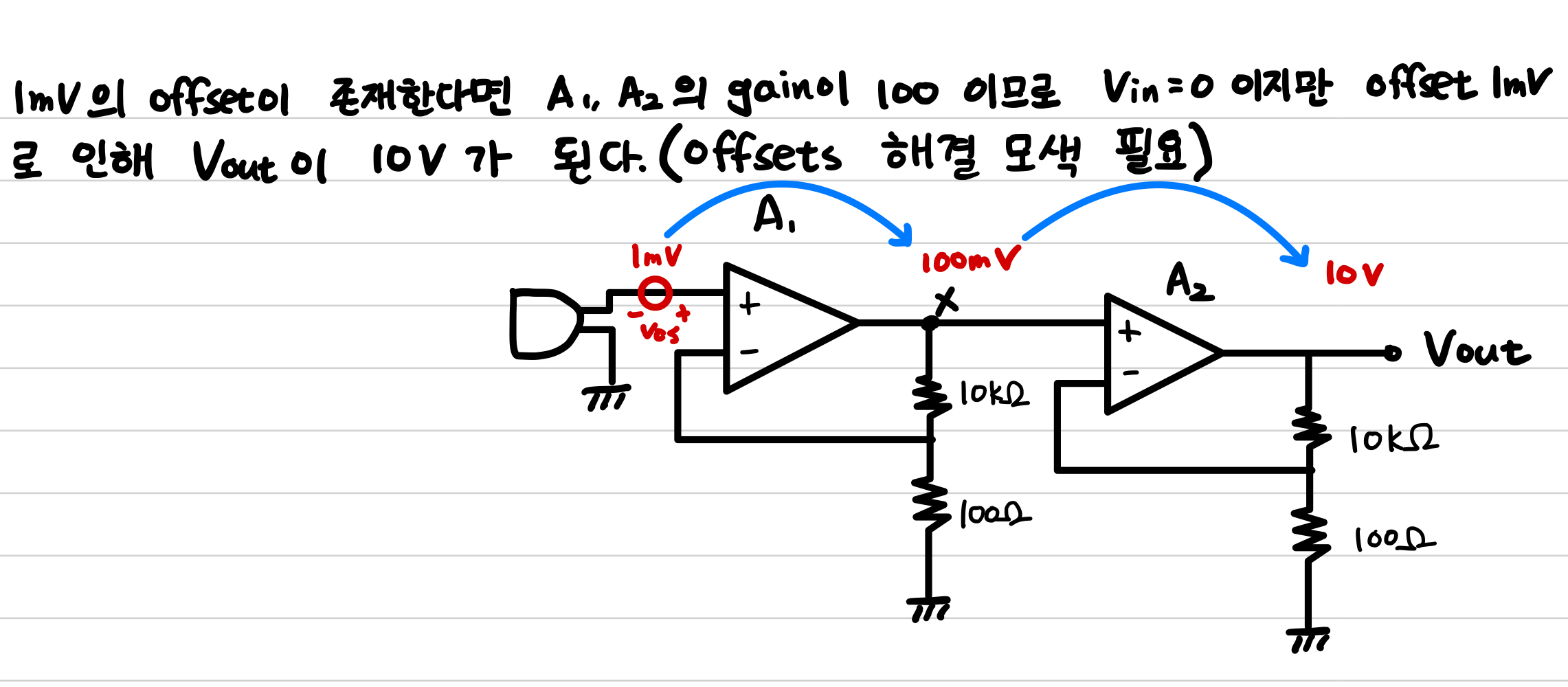

- Offset의 문제점
- Offset in Integrator

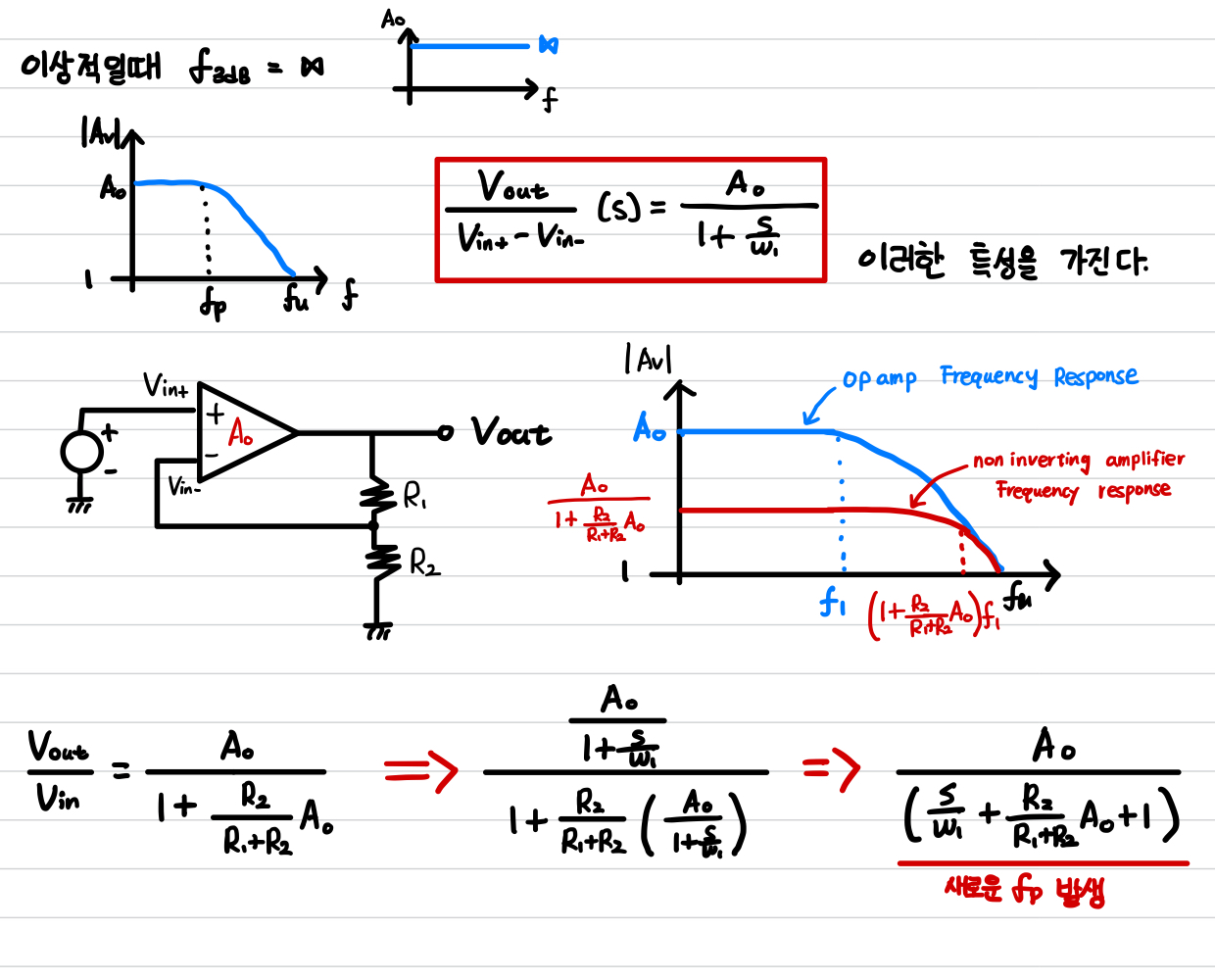

- Op Amp Nonidealities : Speed Limitation

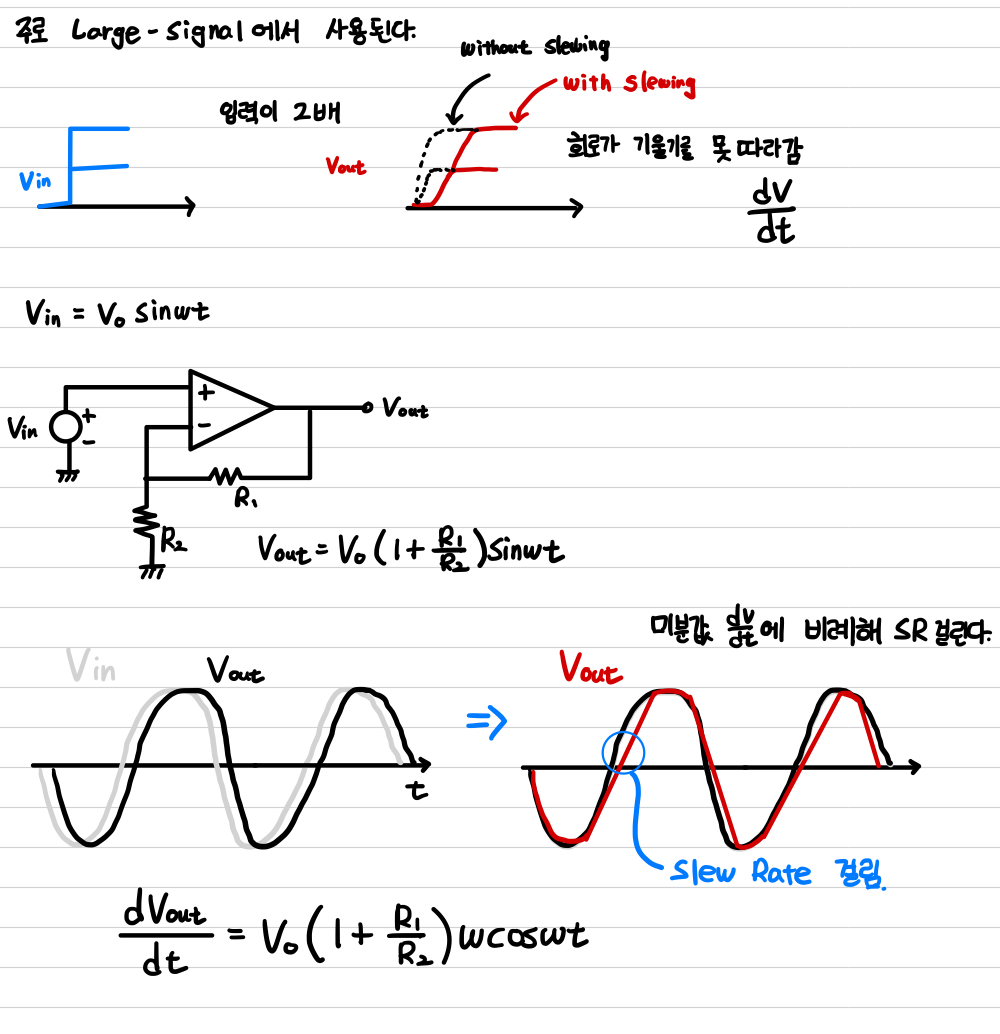

- Slew Rate of Op Amp
- Nonzero Output Resistance
