Circuit/전자회로
20) 캐스코드와 전류거울1 [라자비 전자회로]
Return
2021. 10. 11. 02:02

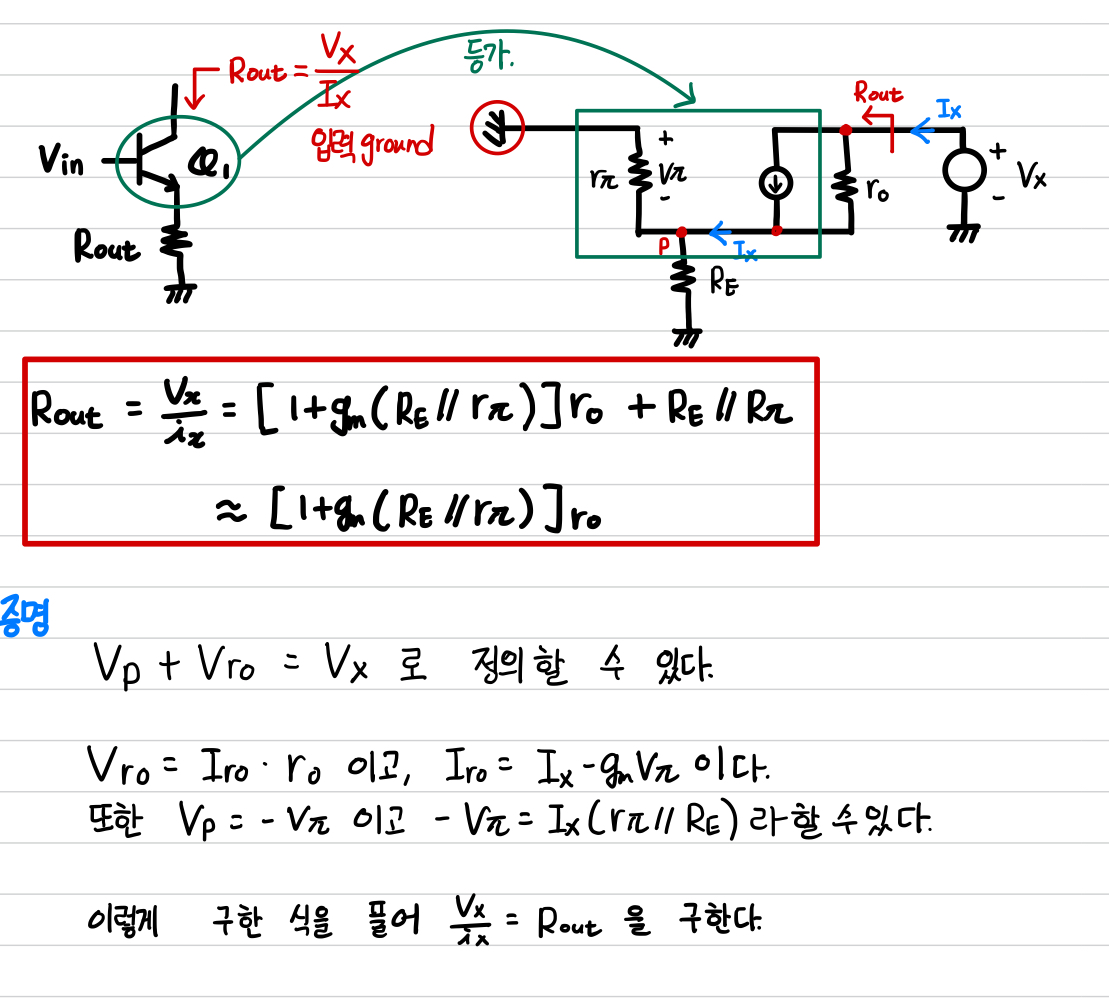

- Review of output Impedance of Degenerated CE Stage

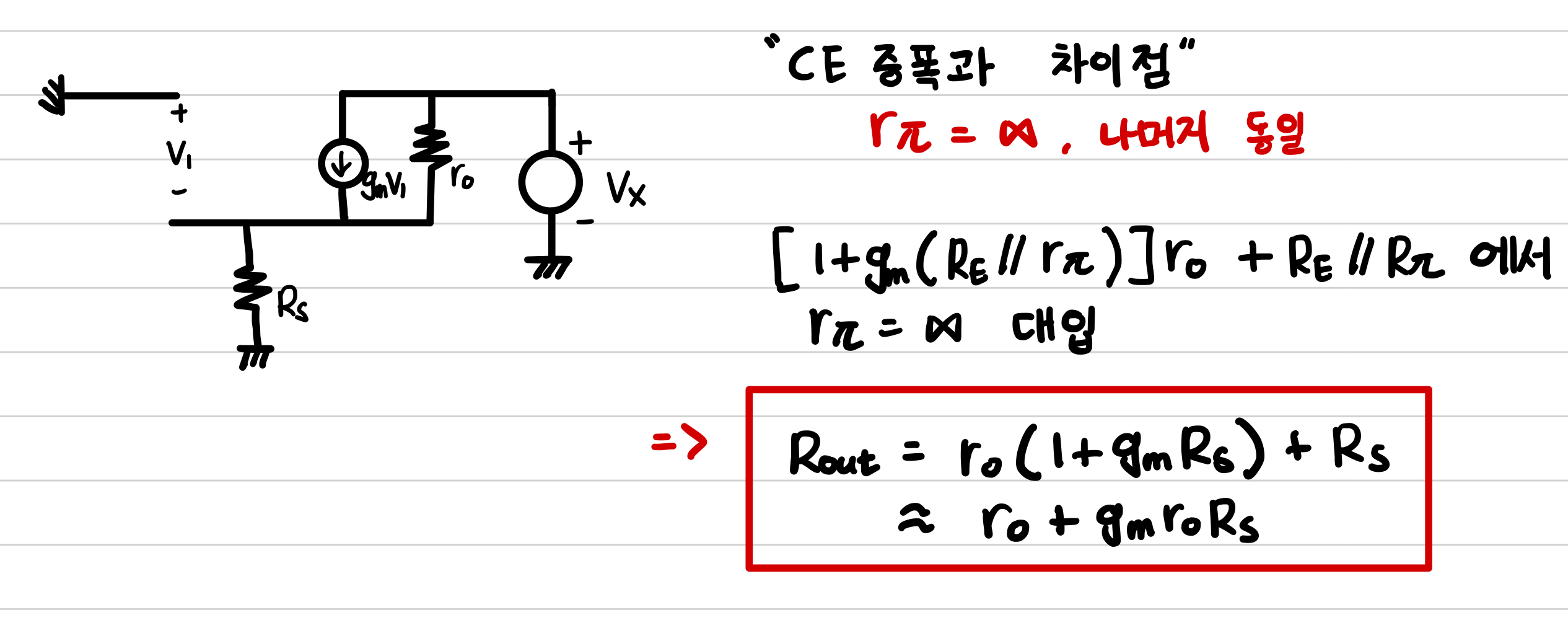

- Review of Output Impedance of Degenerated CS Stage

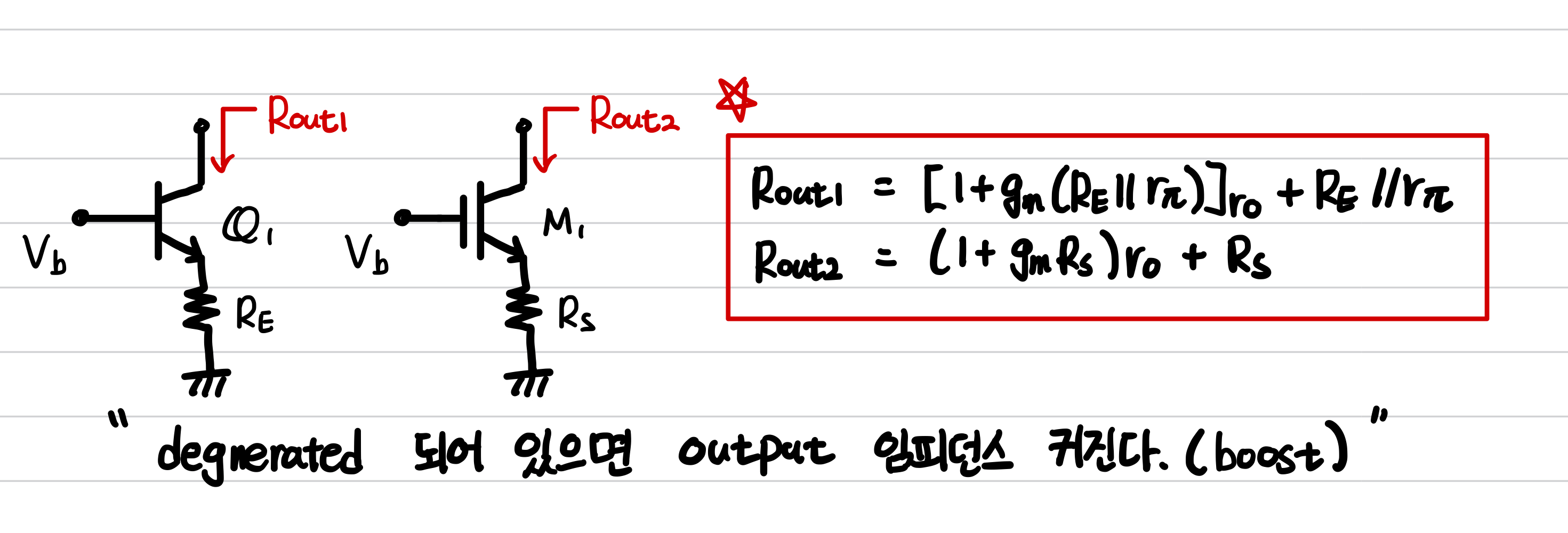

- Boosted Output Impedances

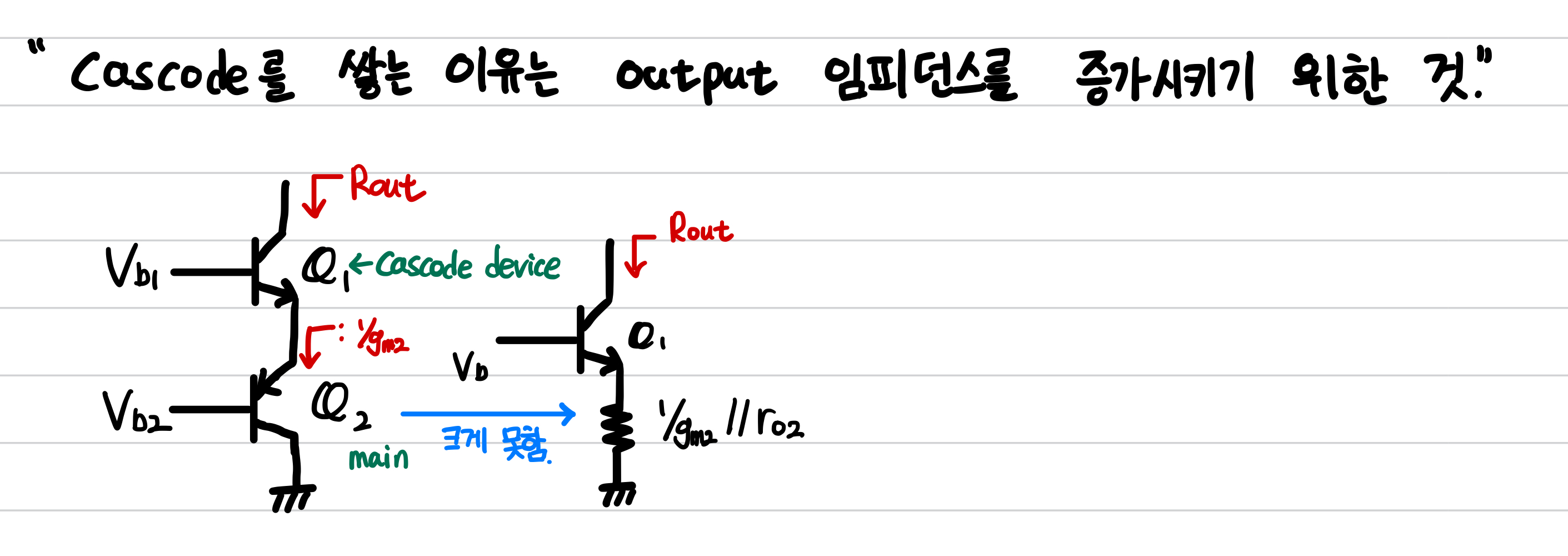

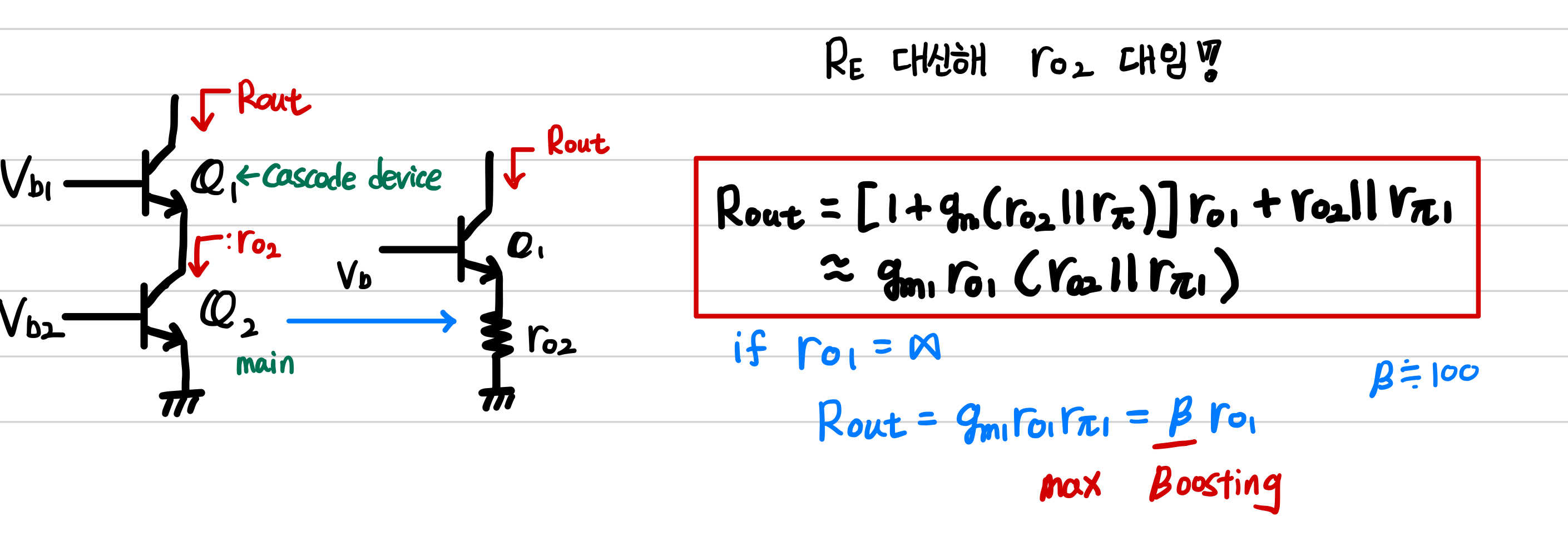

- Bipolar Cascode Stage
- False Cascodes

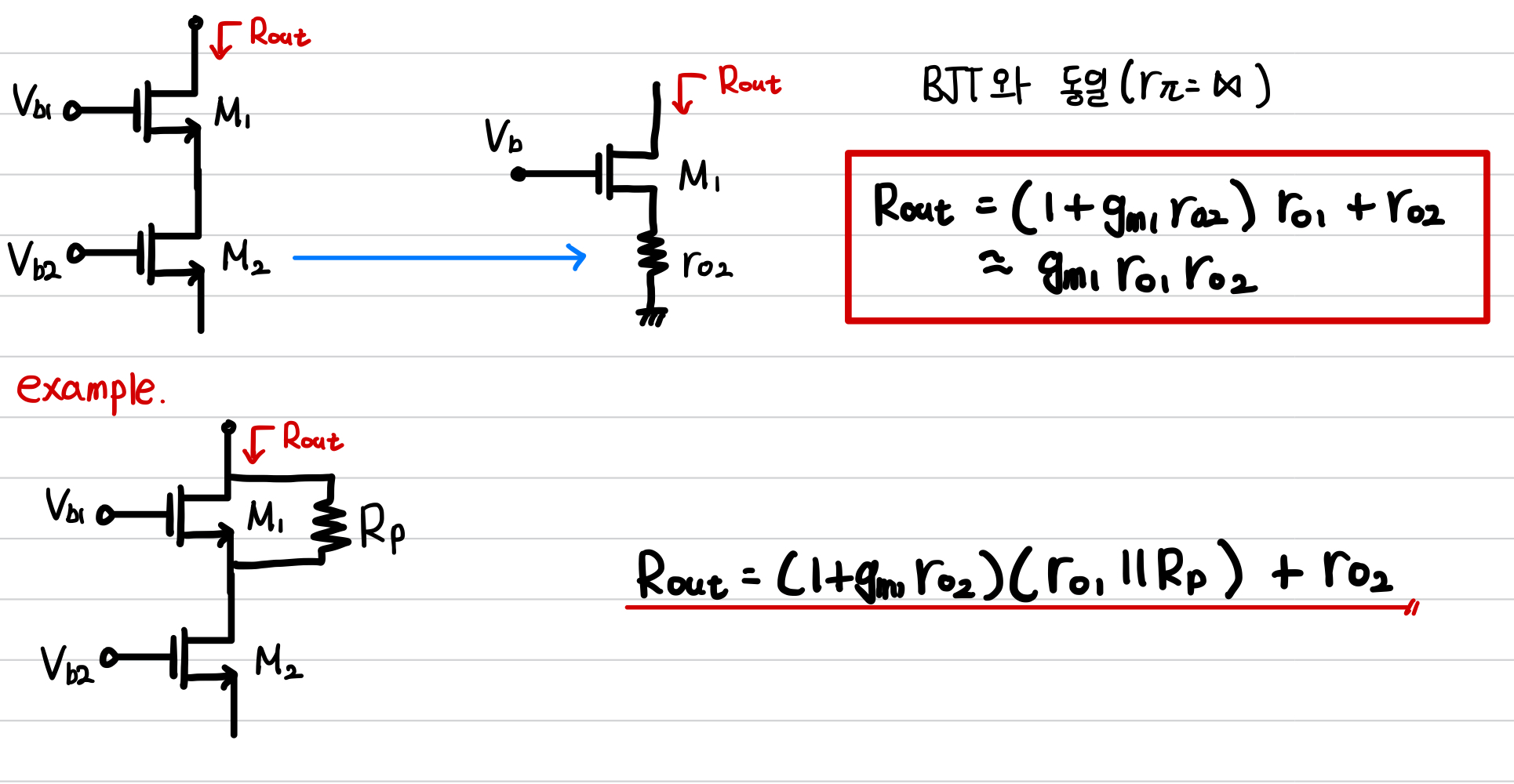

- MOS Cascode Stage

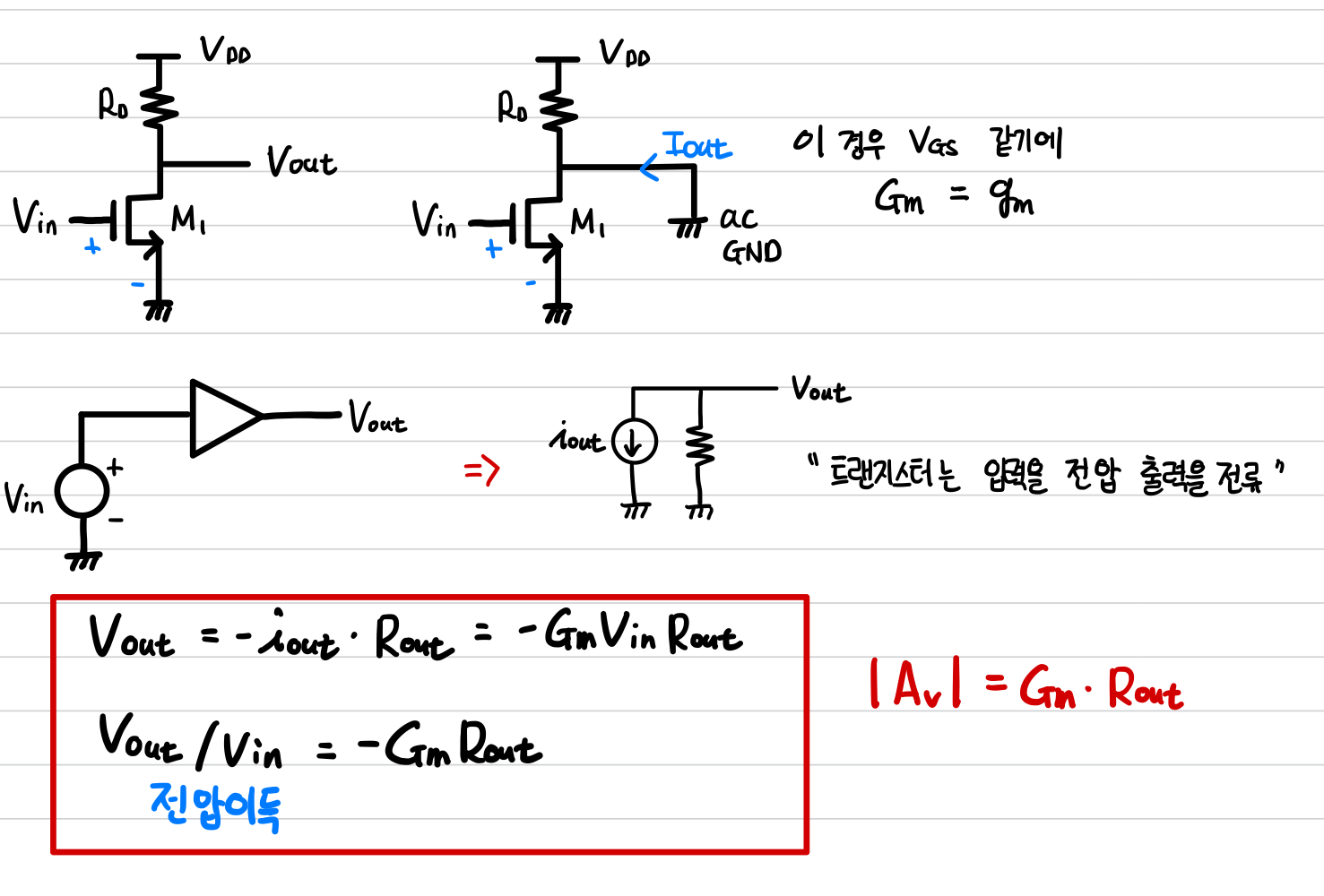

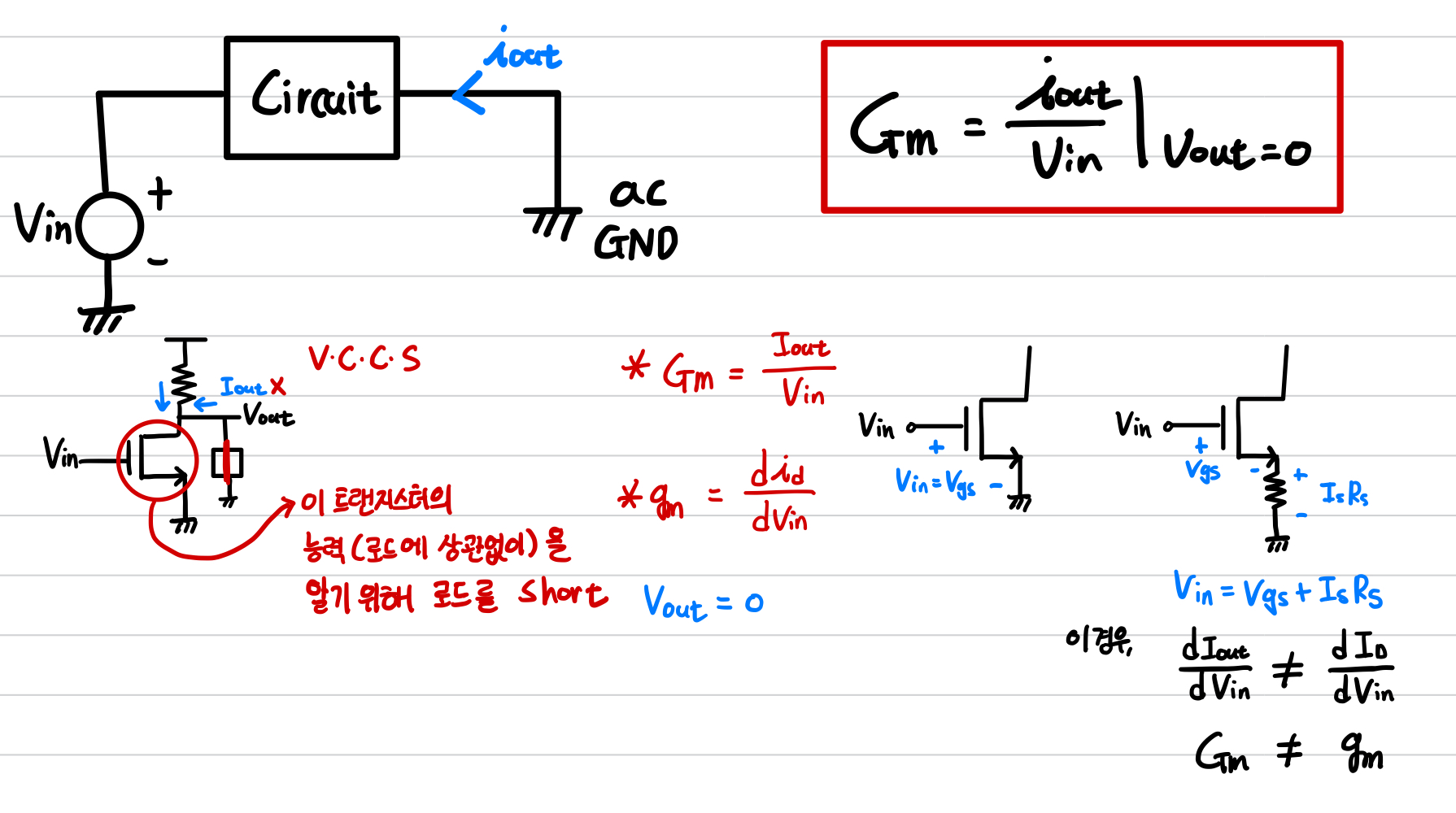

- Short Circuit Transconductance
- Example
