24) 차동 증폭기2 [라자비 전자회로]
Return
2021. 10. 11. 02:26

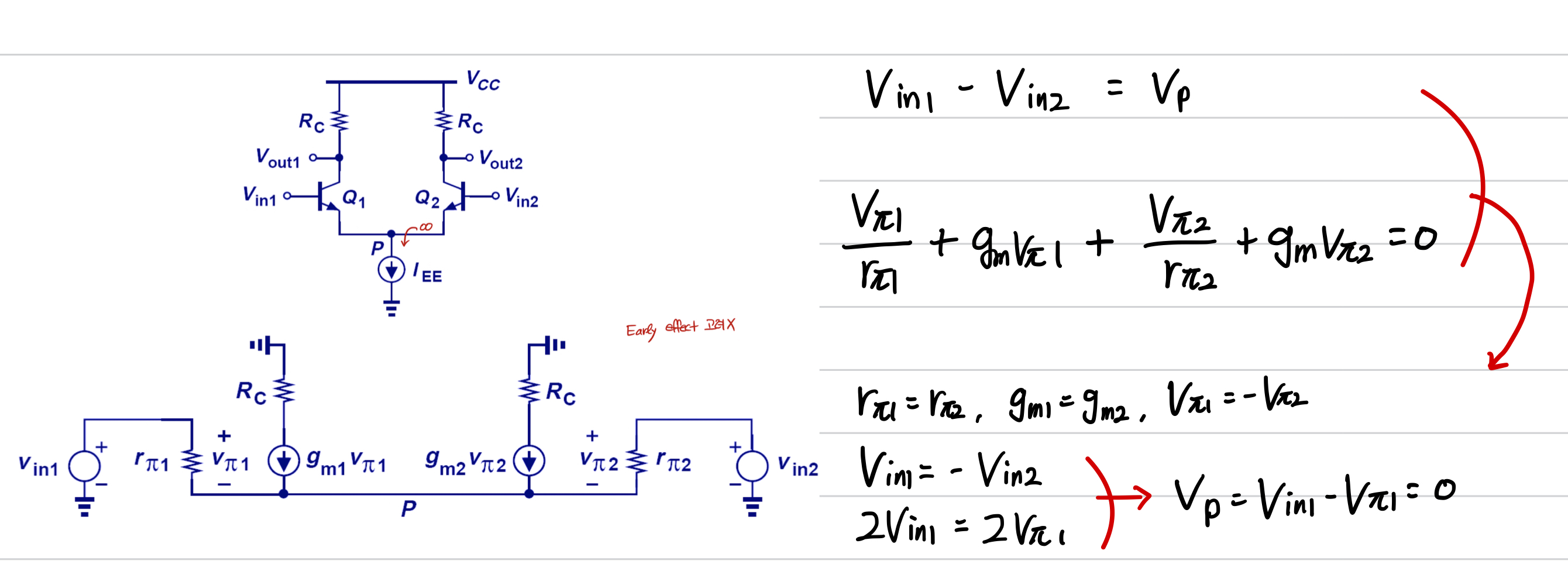

- Small Signal Analysis
- Large Signal Analysis
- Small Signal Model

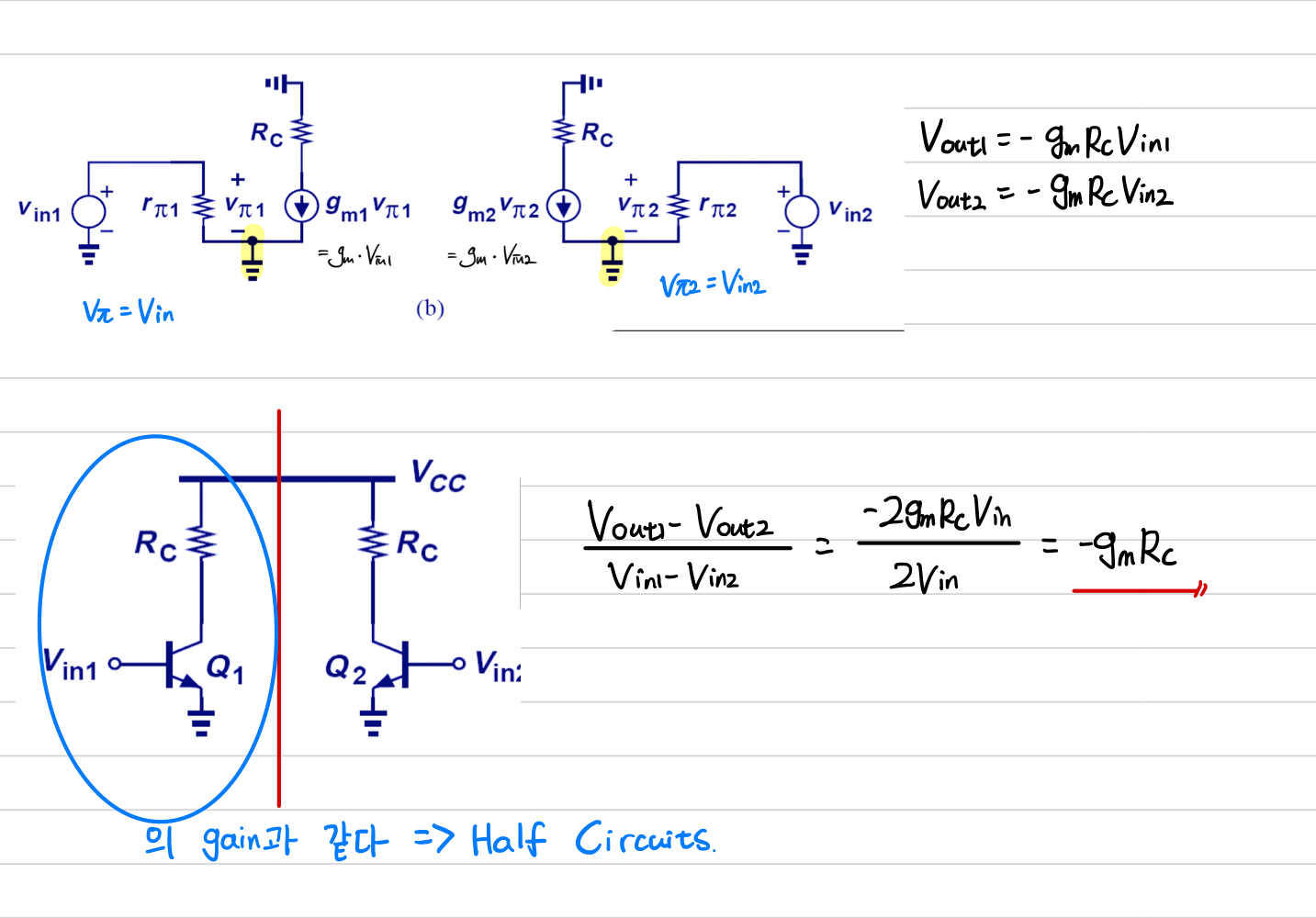

- Half Circuits

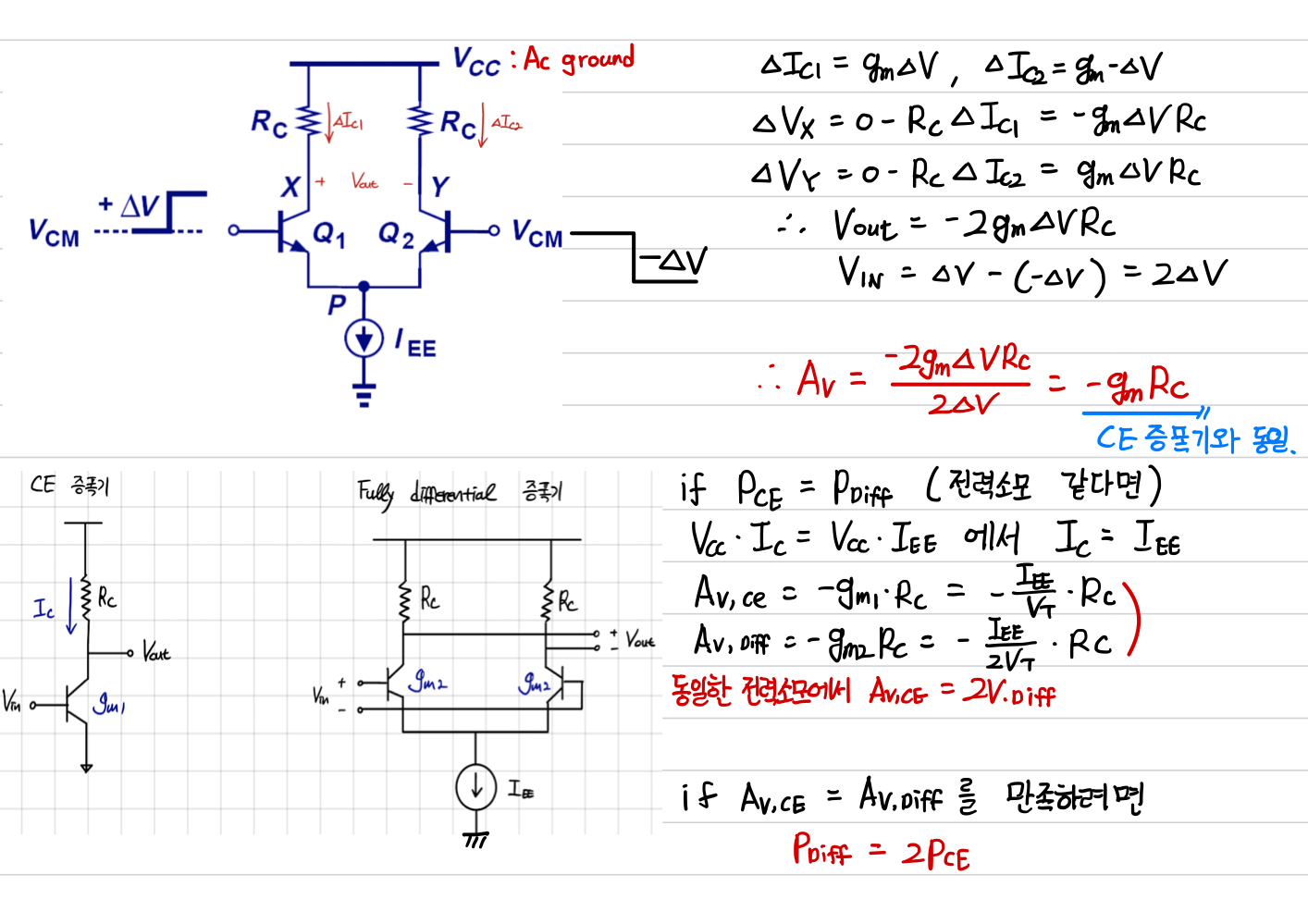

Example : differential Gain

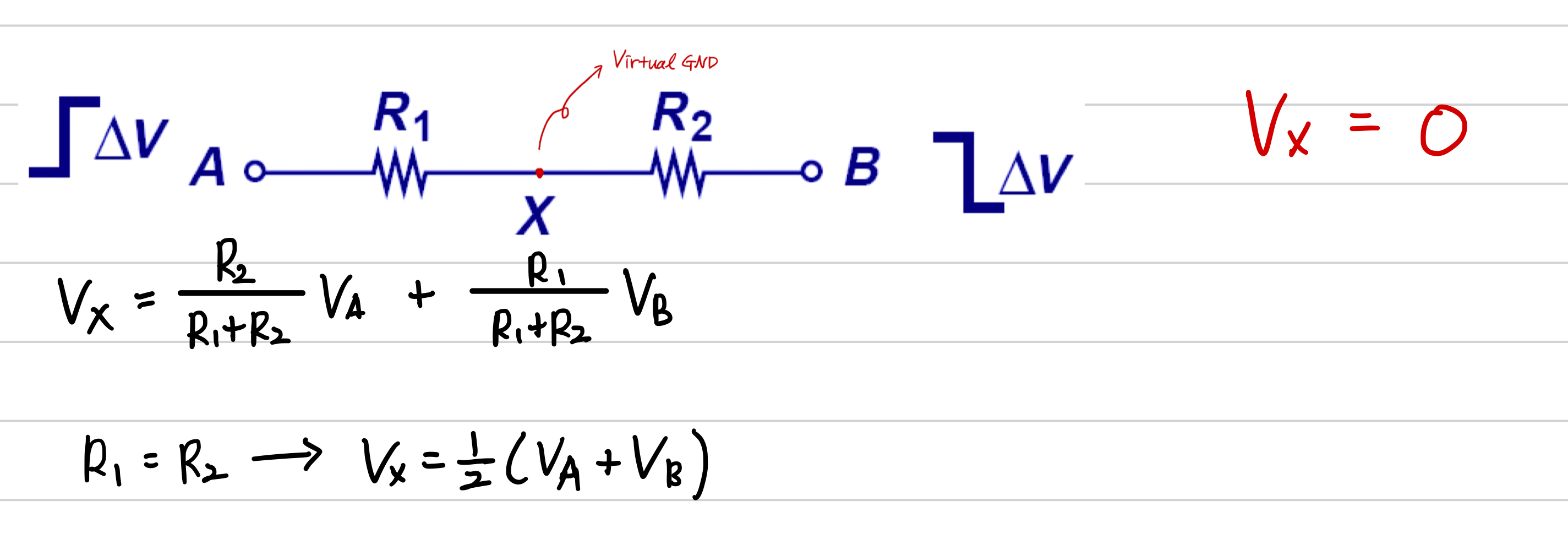

- Extension of Virtual Ground

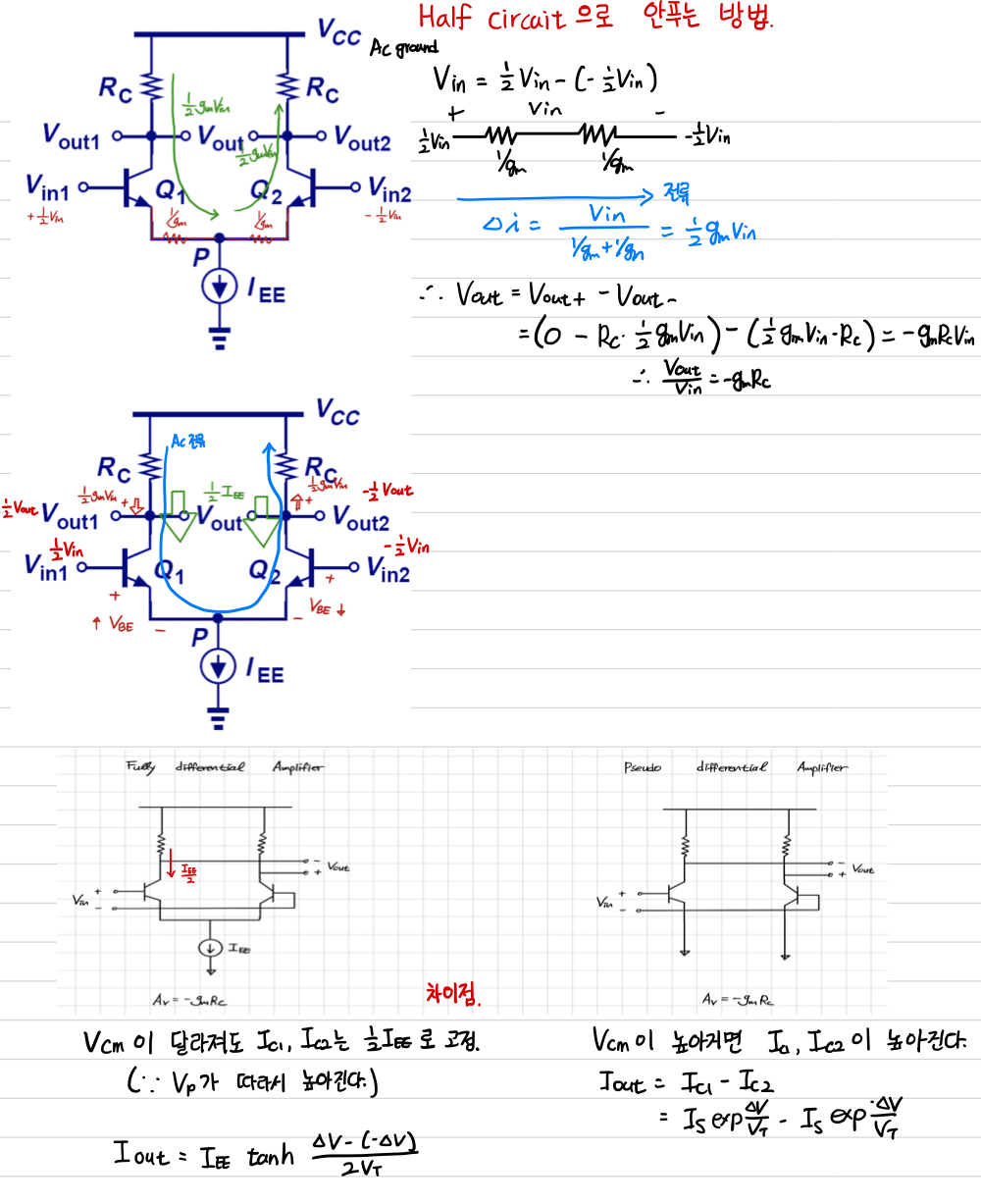

- Half Circuit Example

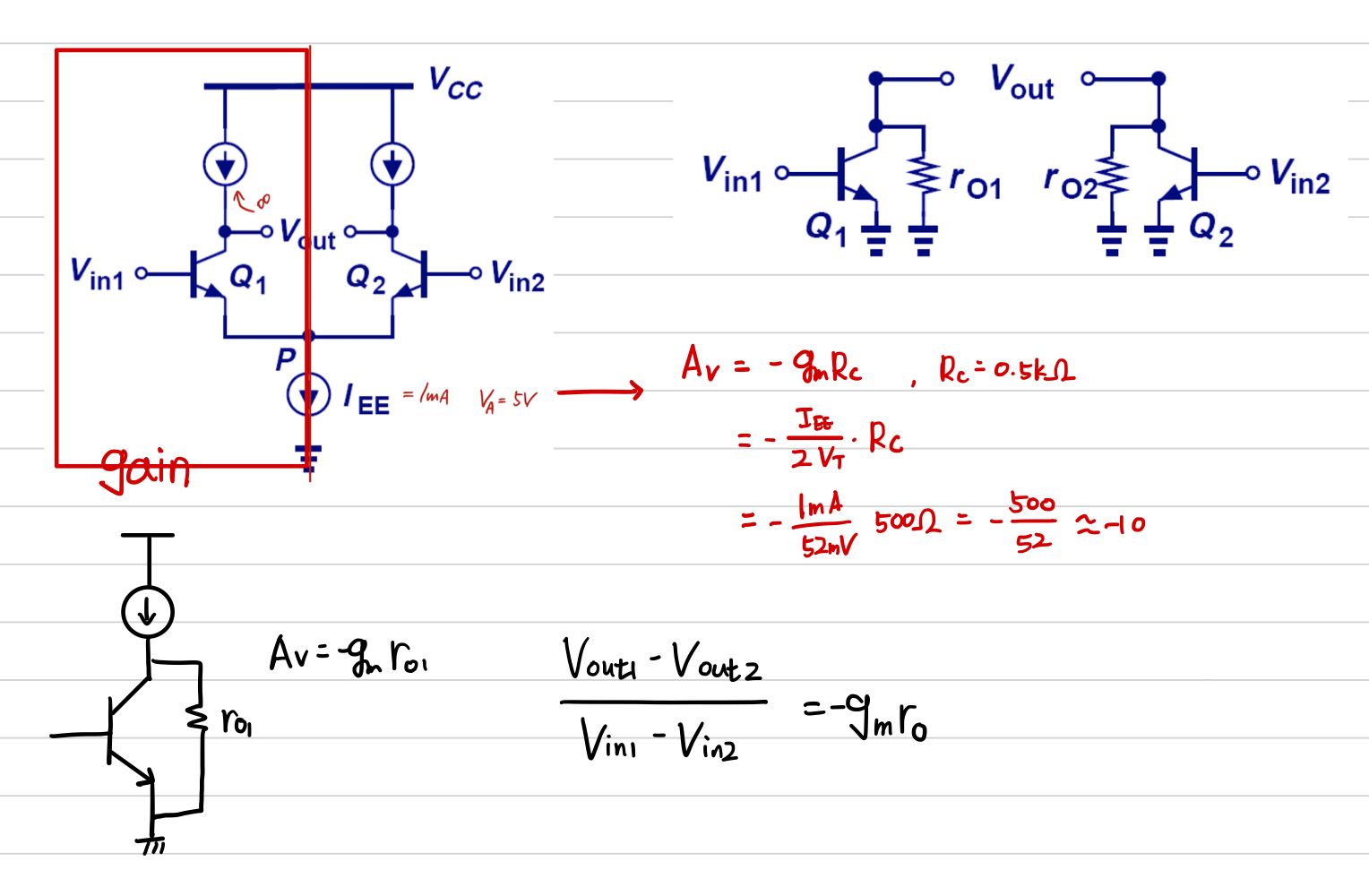

- without half circuit
