18) Op Amp2 [라자비 전자회로]Circuit/전자회로2021. 10. 11. 01:43
Table of Contents

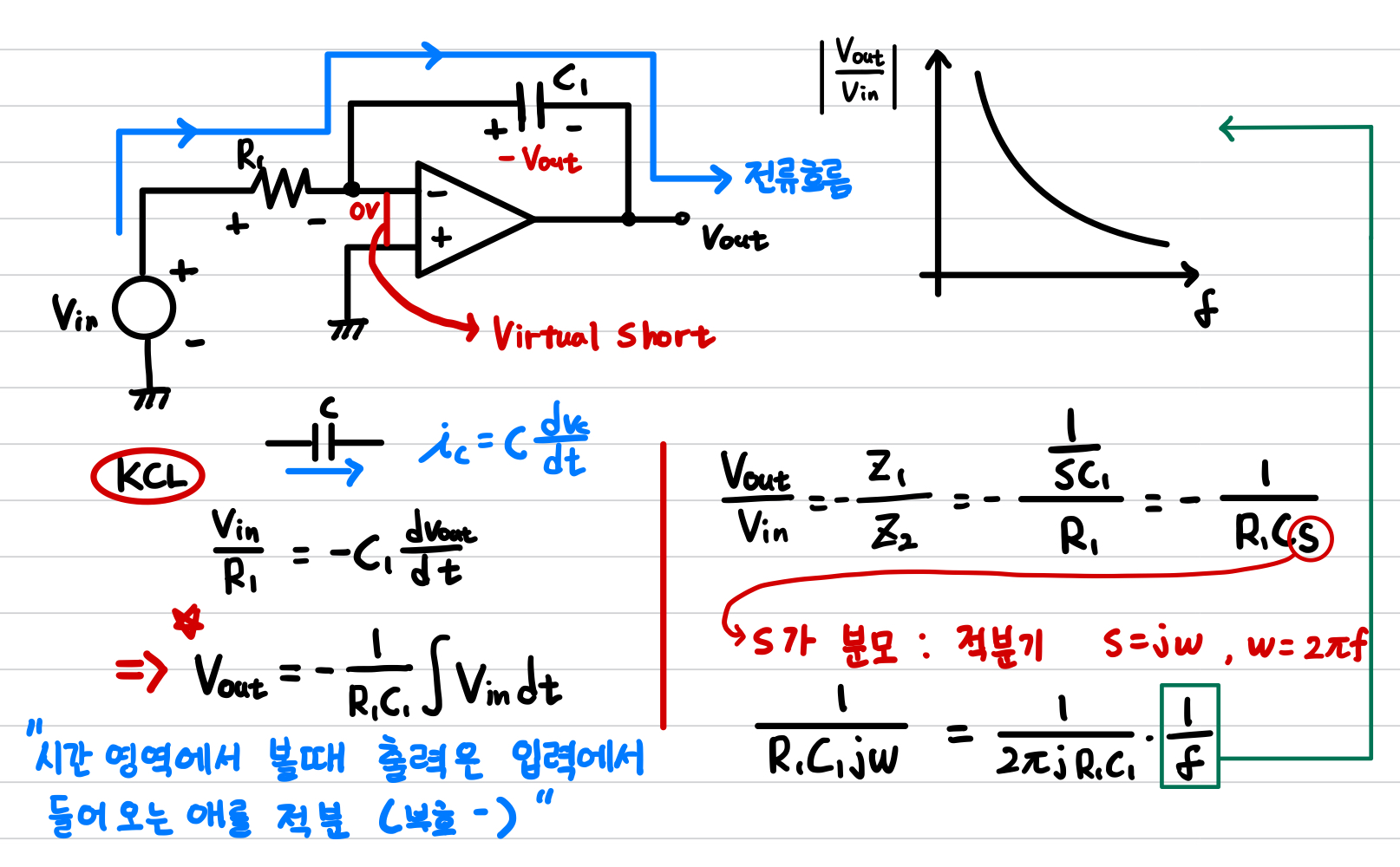

- Integrator (적분기)

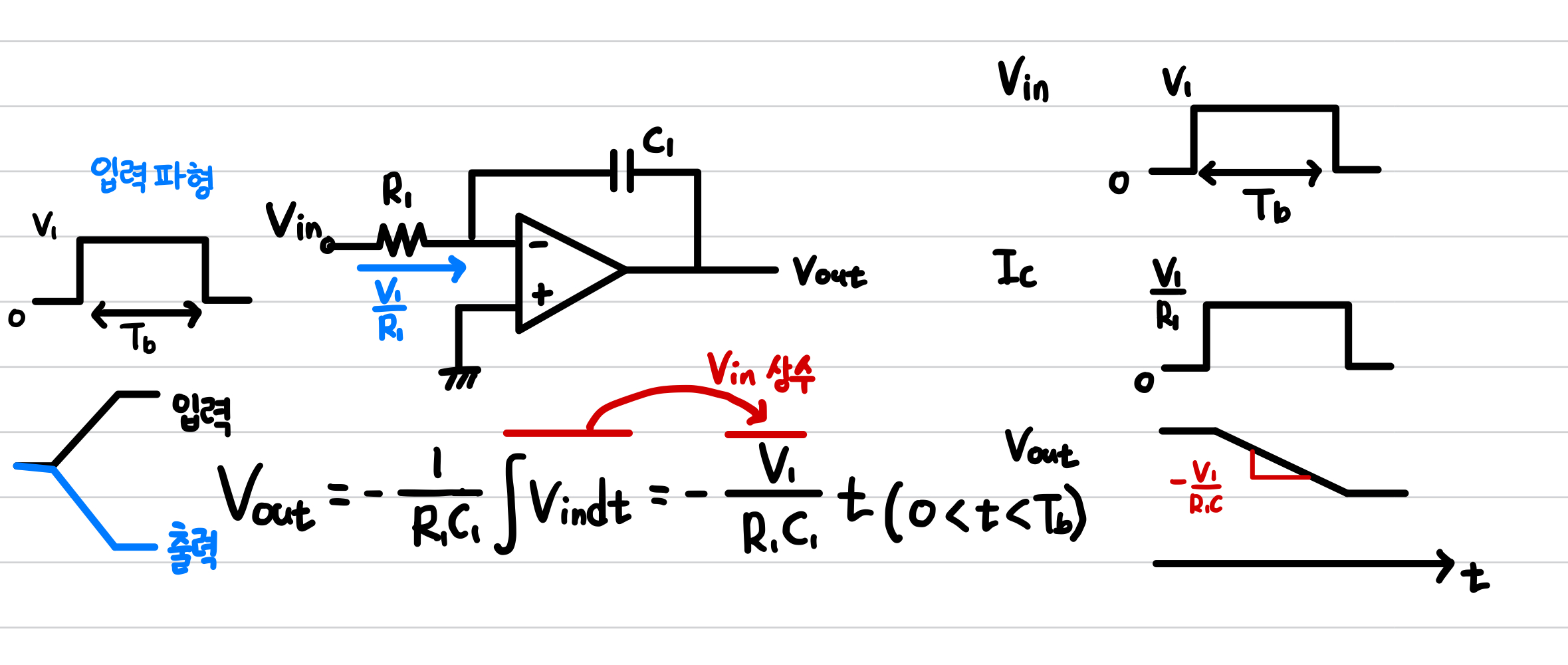

- Integrator with Pulse input

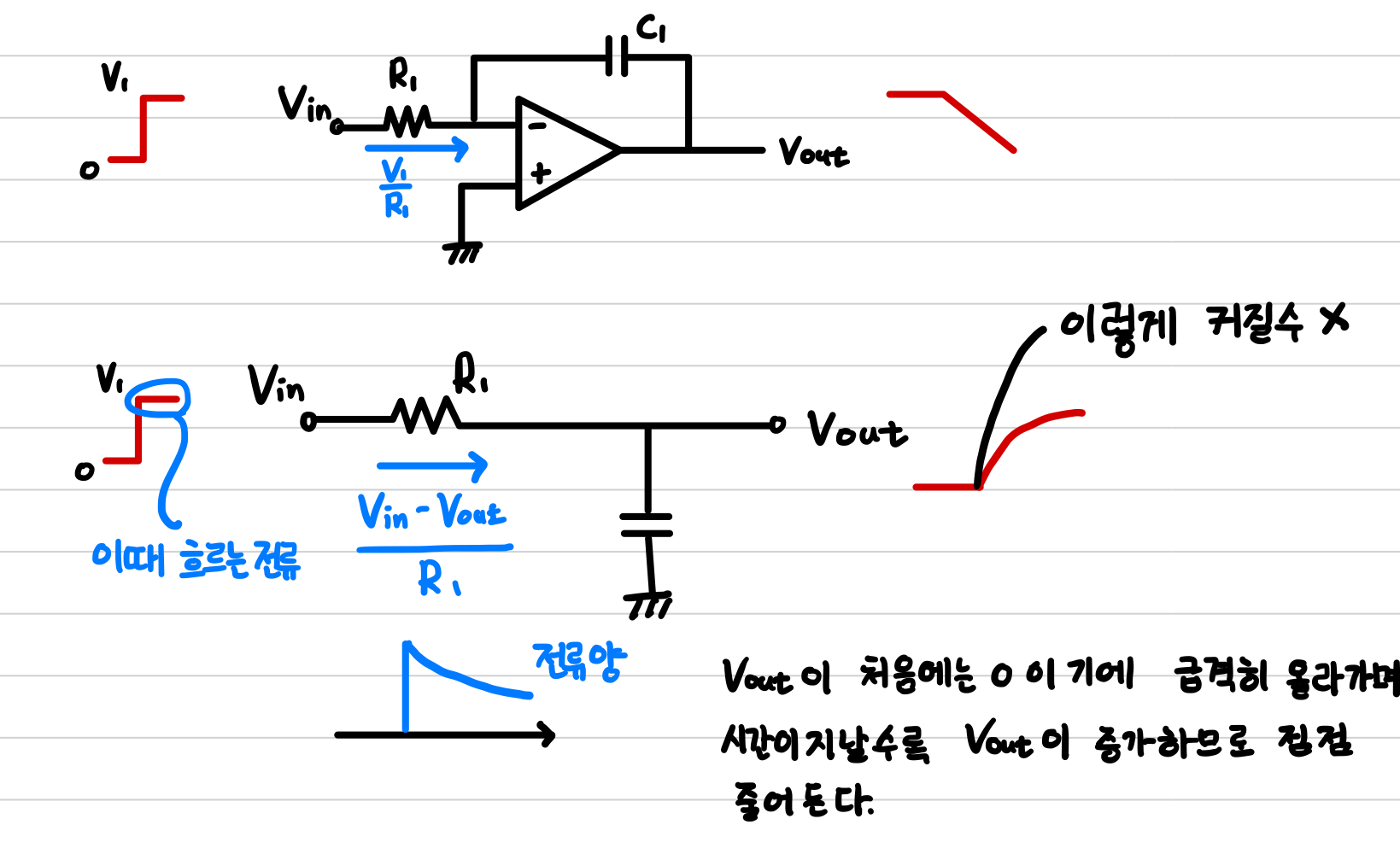

- Comparison of Integrator and RC Lowpass Filter
- Lossy Integrator

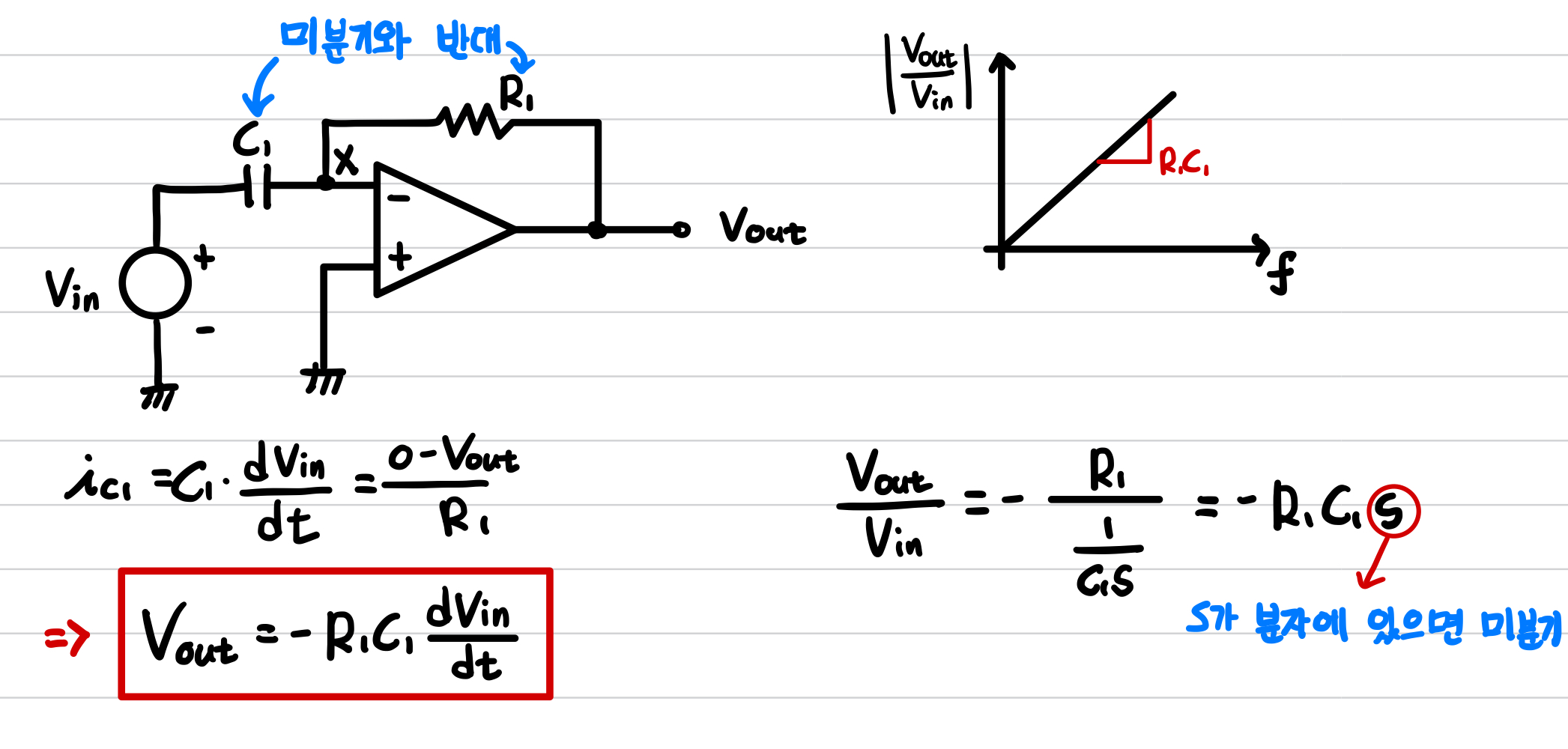

- Differentiator (미분기)

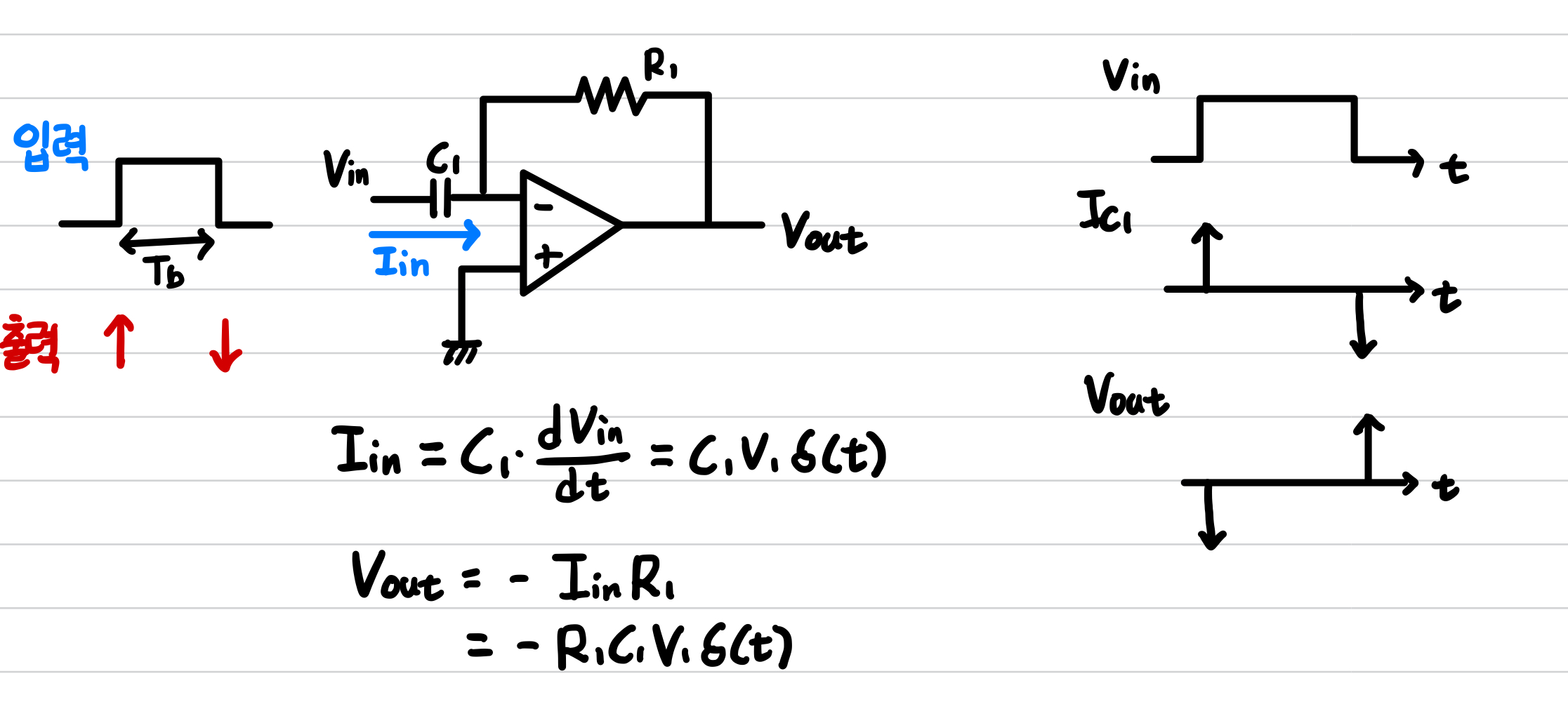

- Differentiator with Pulse Input

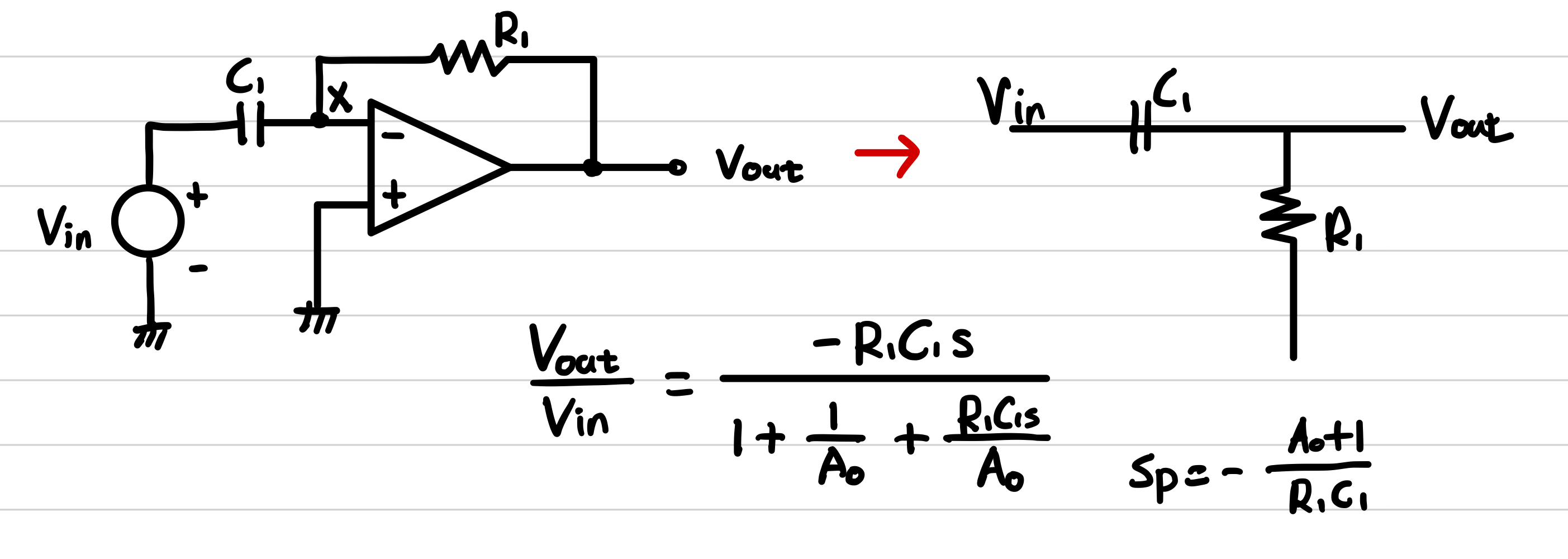

- Lossy Differentiator

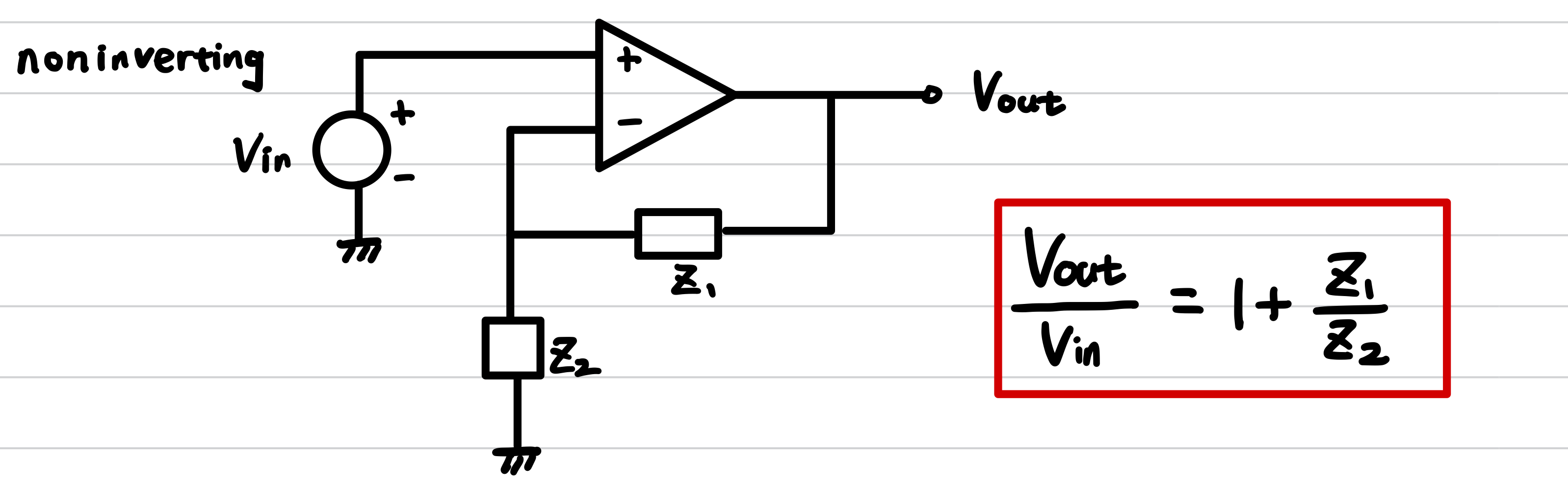

-Op Amp with General Impedances

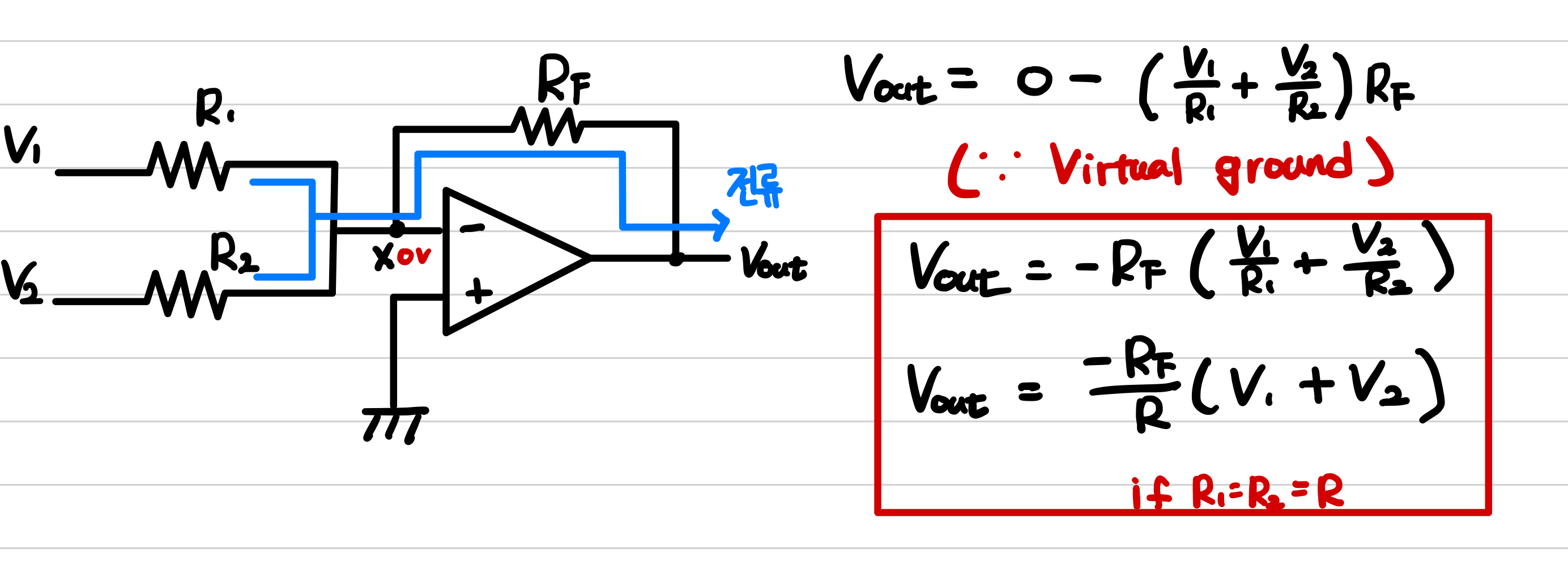

-Voltage Adder
