21) 캐스코드와 전류거울2 [라자비 전자회로]Circuit/전자회로2021. 10. 11. 02:04
Table of Contents

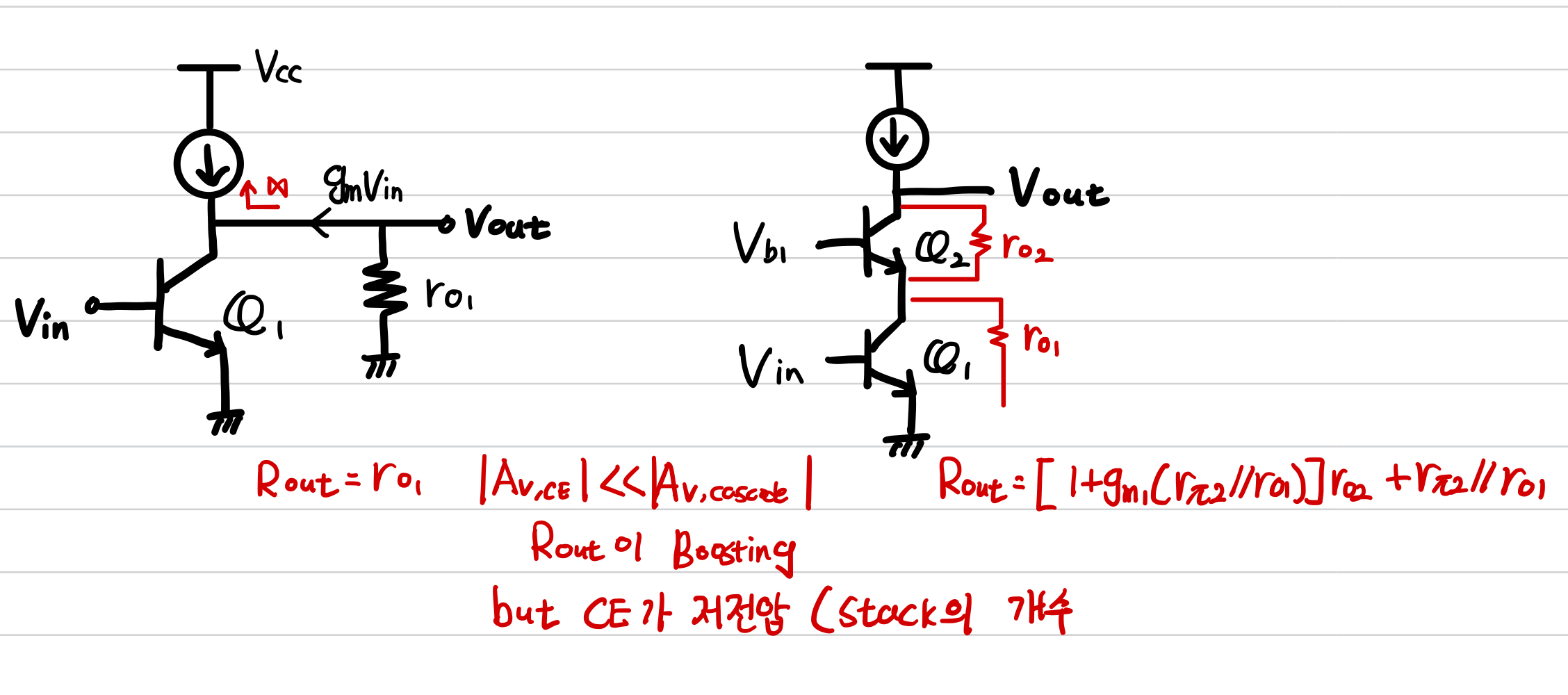

- Comparsion between Bipolar Cascode and CE Stage

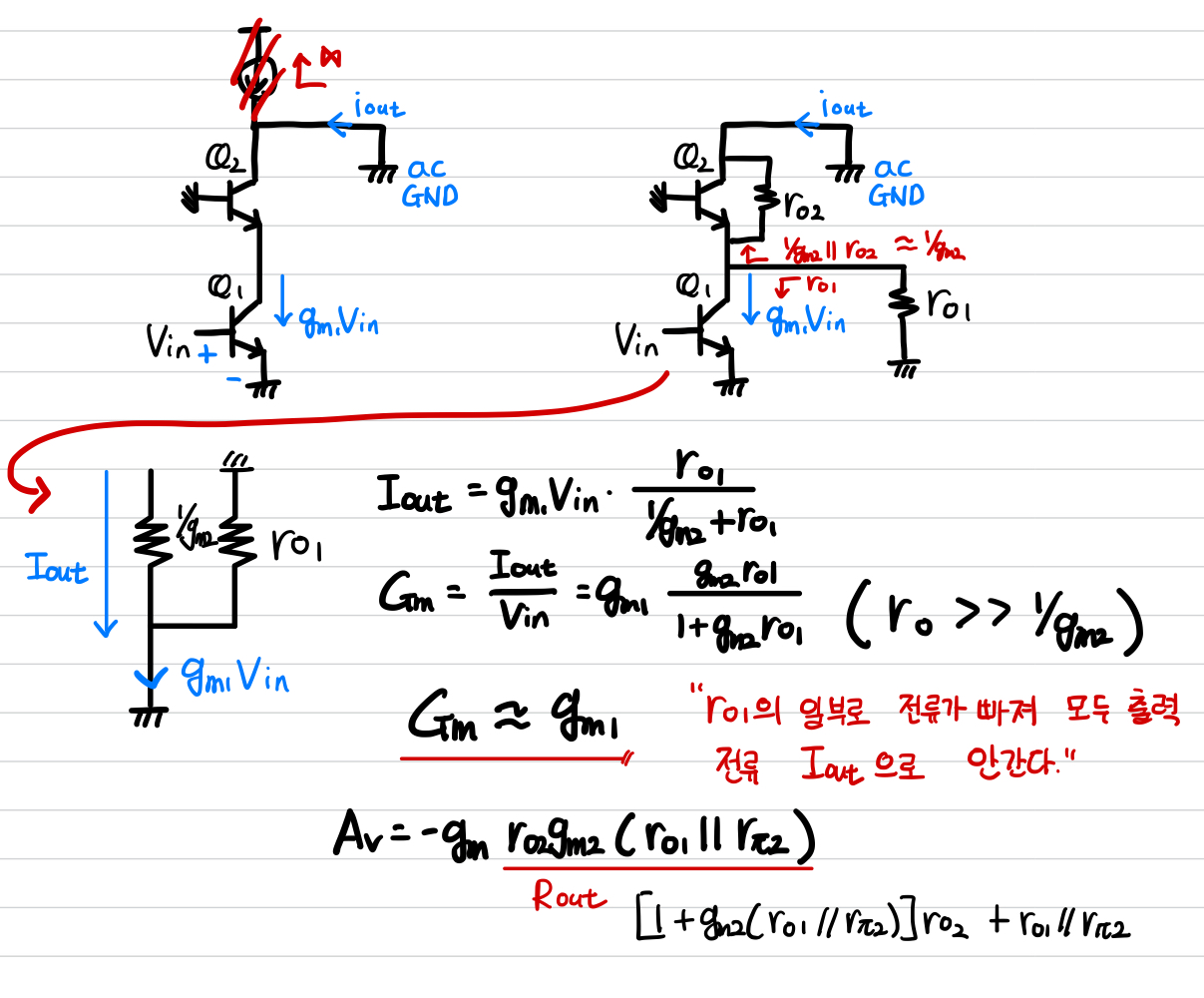

- Voltage Gain of Bipolar Cascode Amplifier

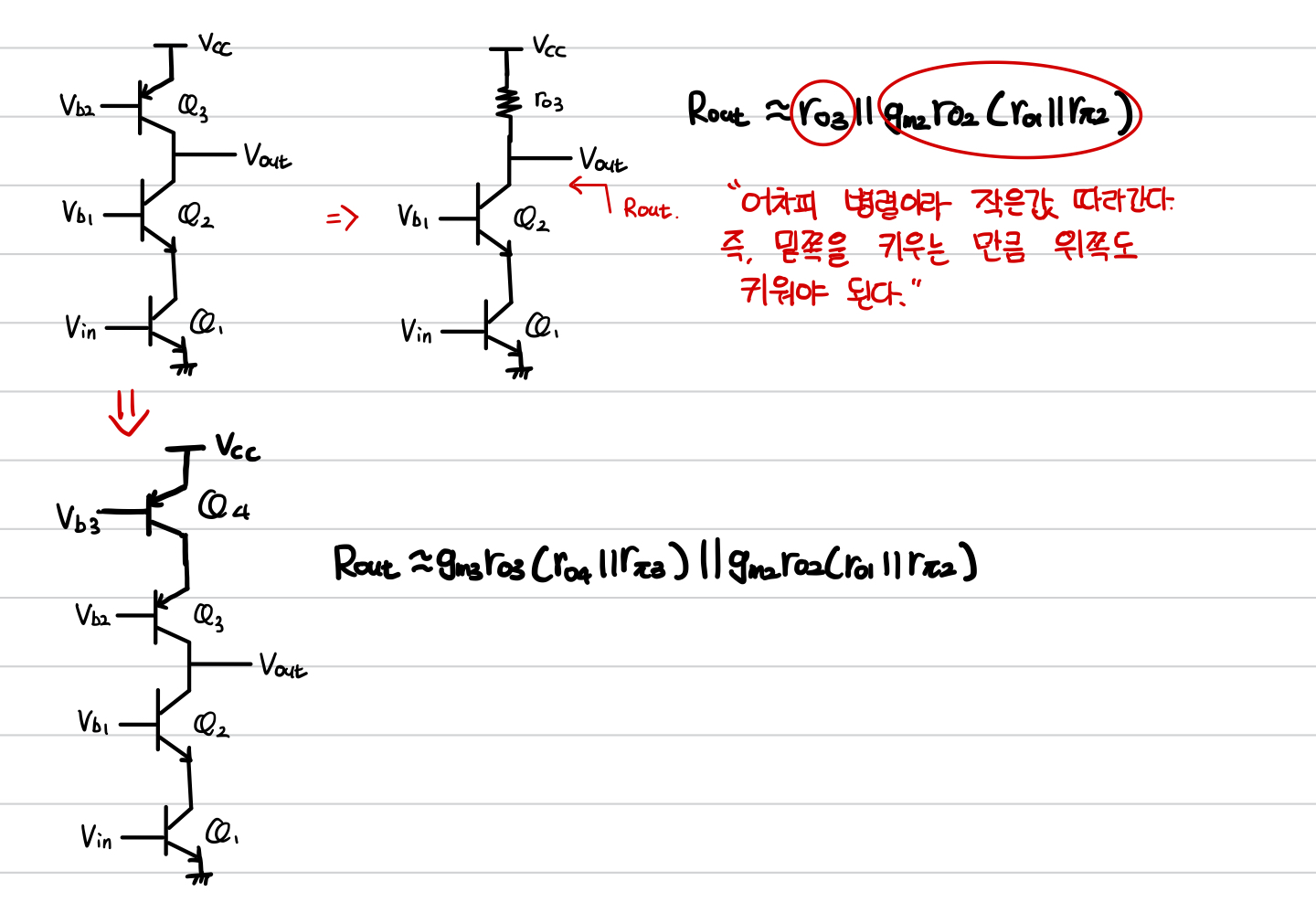

- Practical Cascode Stage

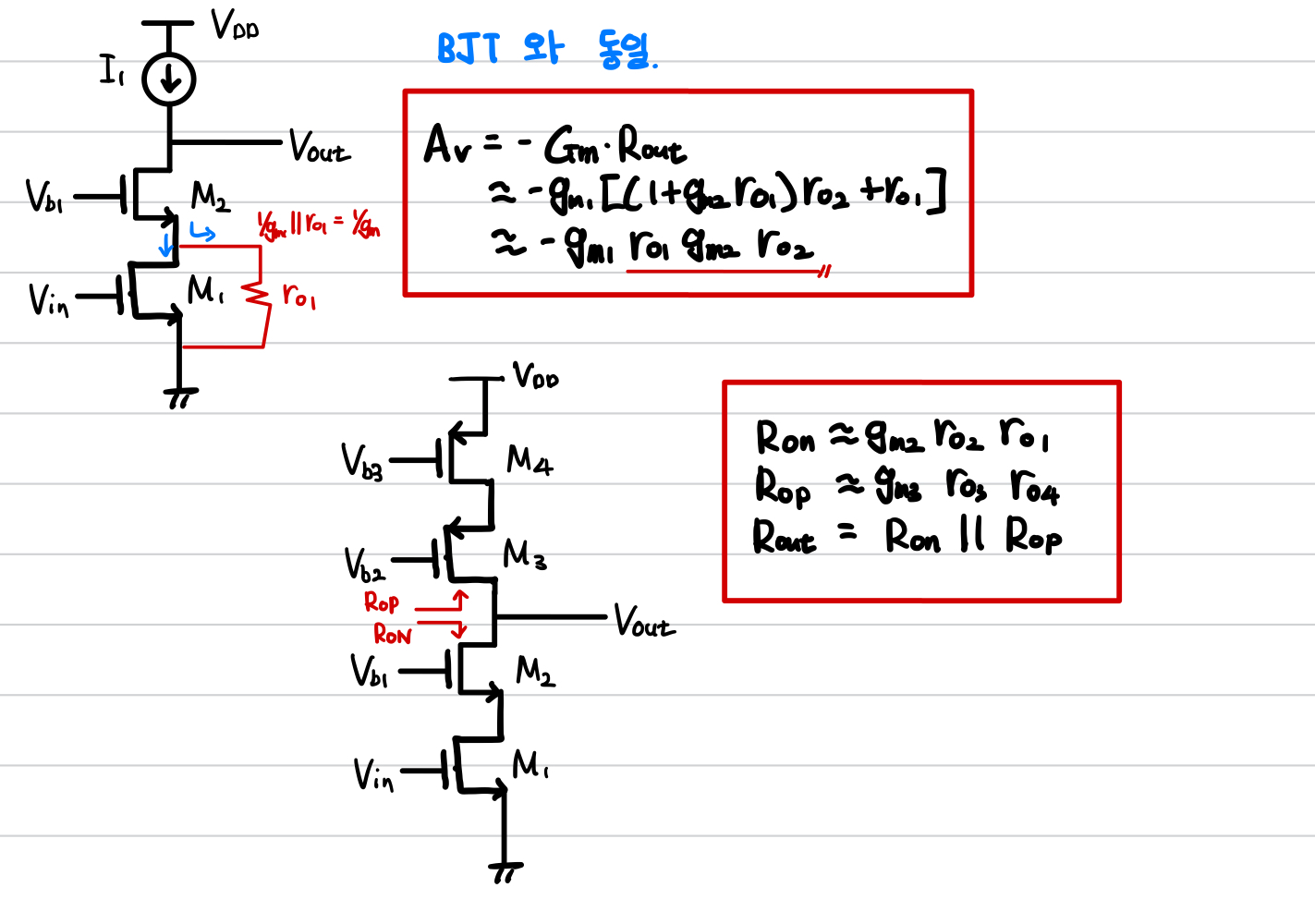

- MOS Cascode Amplifier
