24) 차동 증폭기2 [라자비 전자회로]Circuit/전자회로2021. 10. 11. 02:26
Table of Contents
- Small Signal Analysis

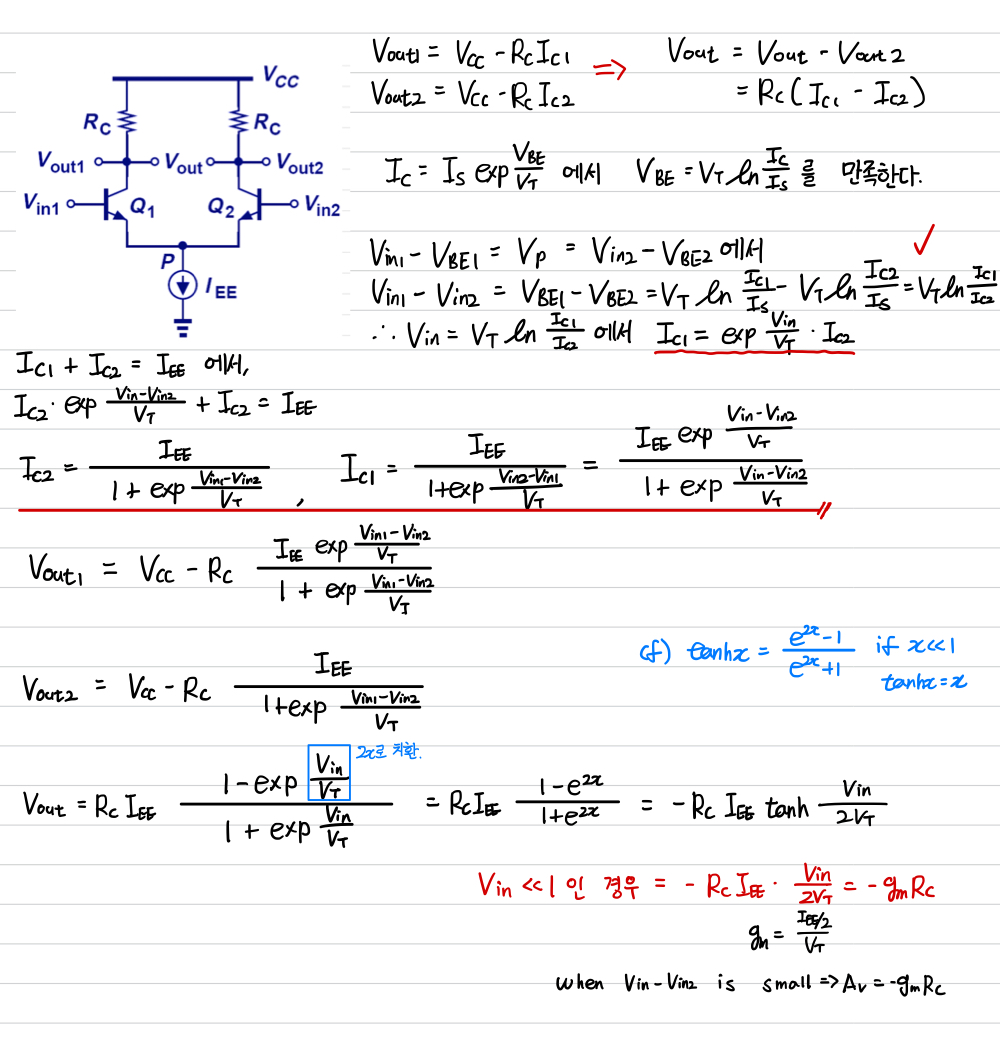

- Large Signal Analysis

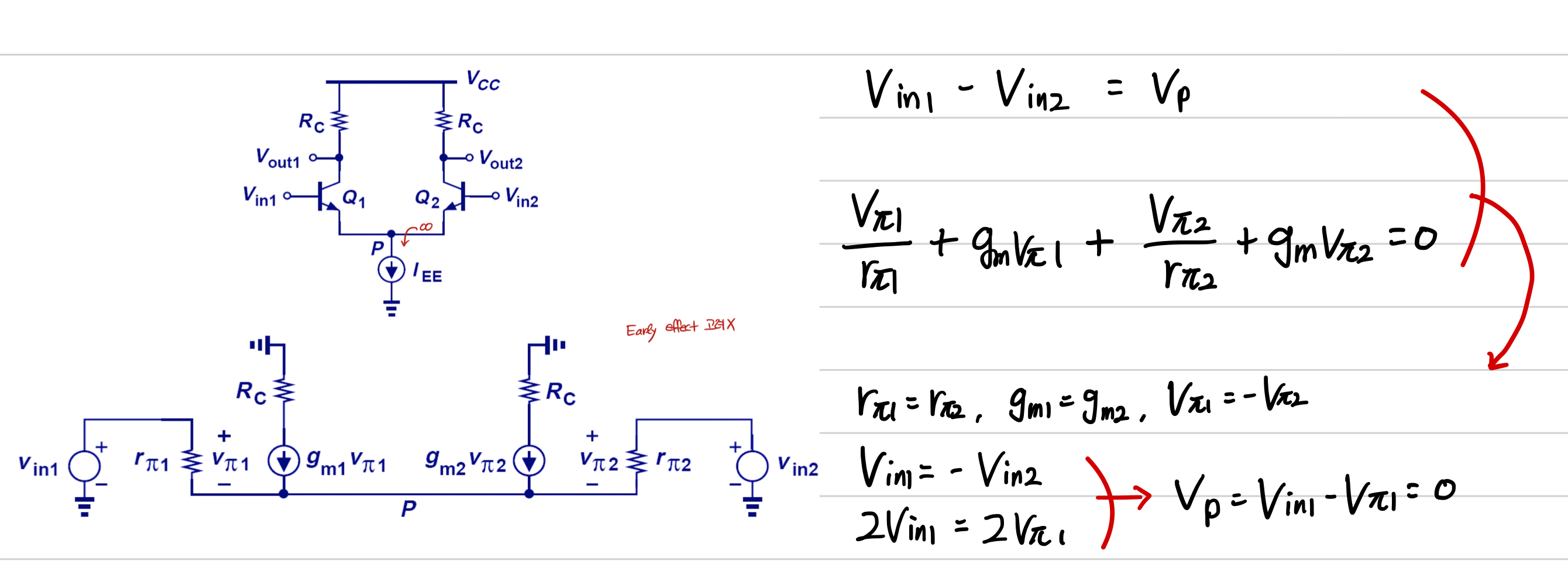

- Small Signal Model

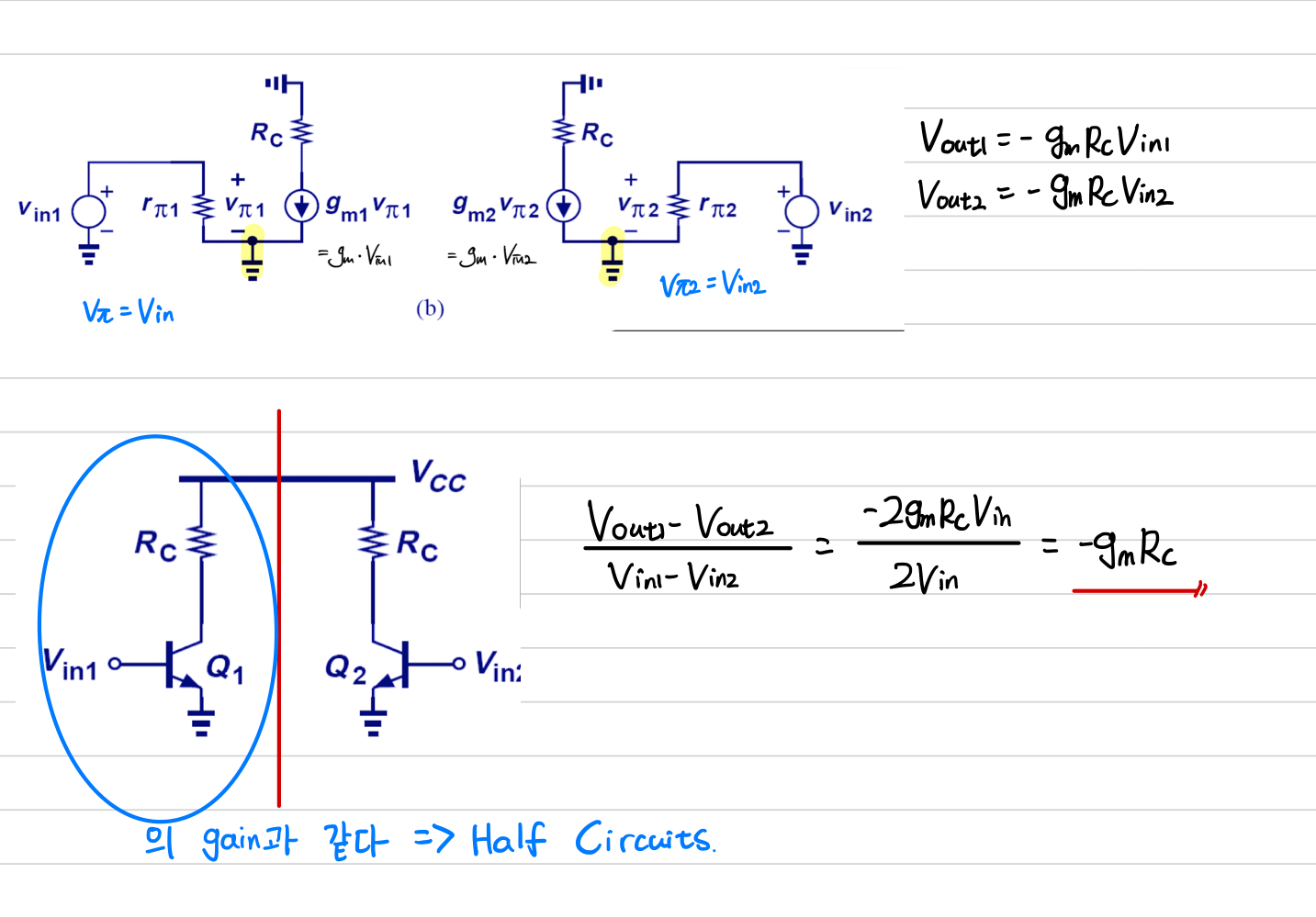

- Half Circuits

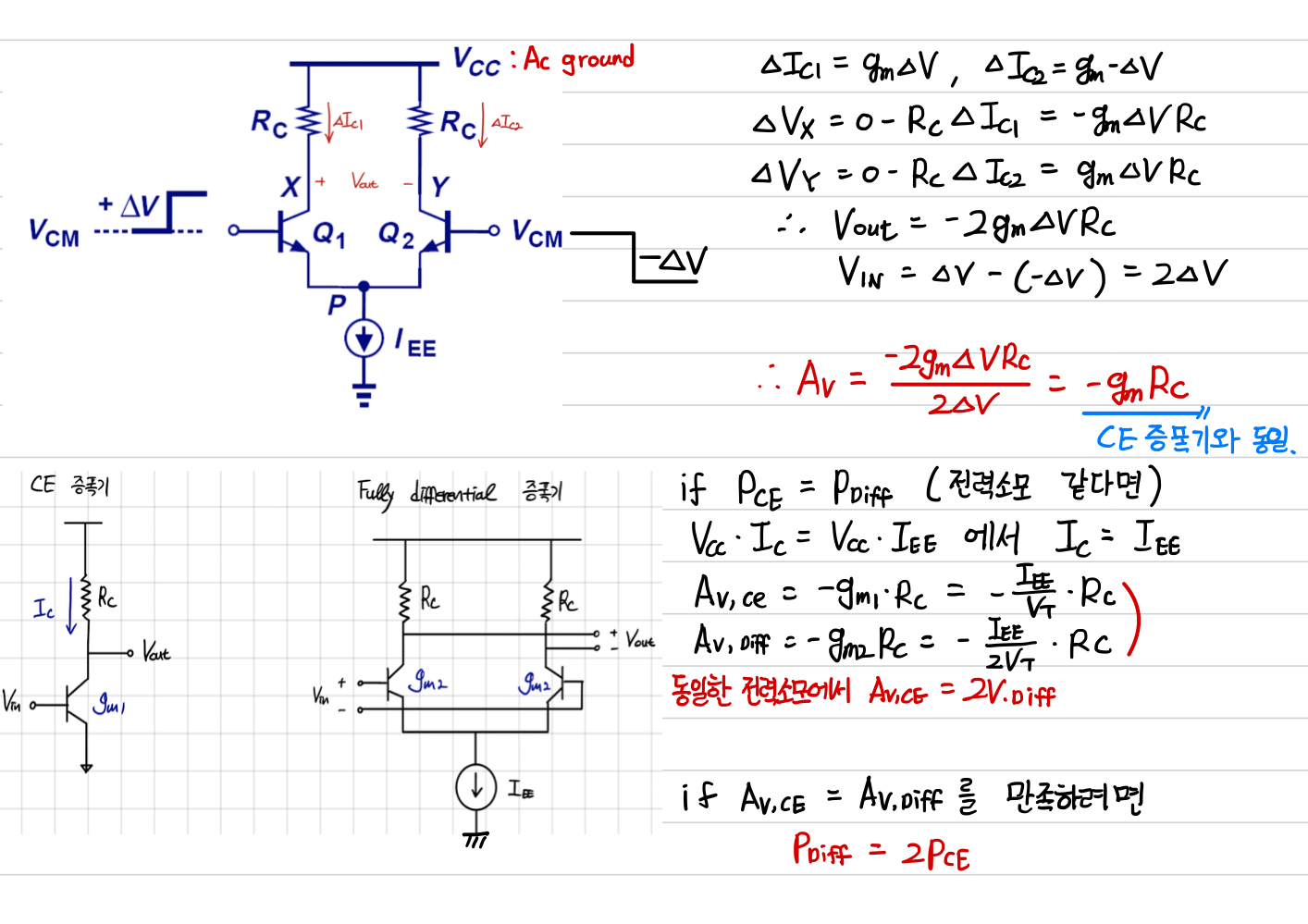

Example : differential Gain

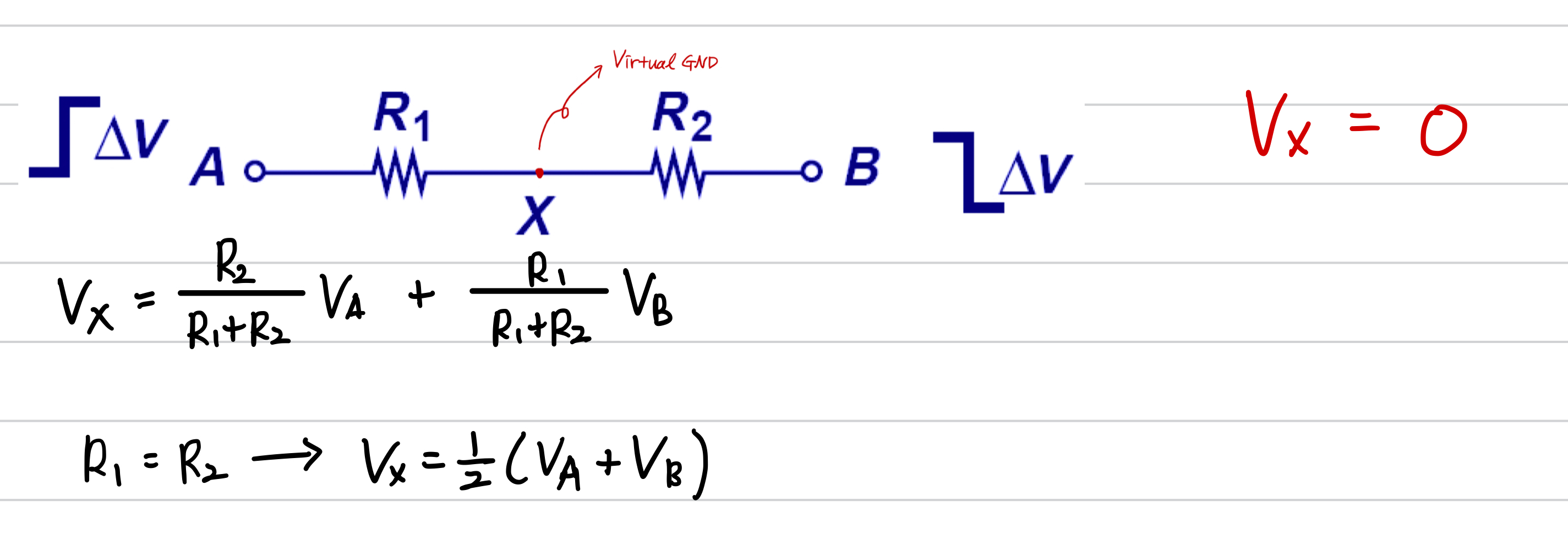

- Extension of Virtual Ground

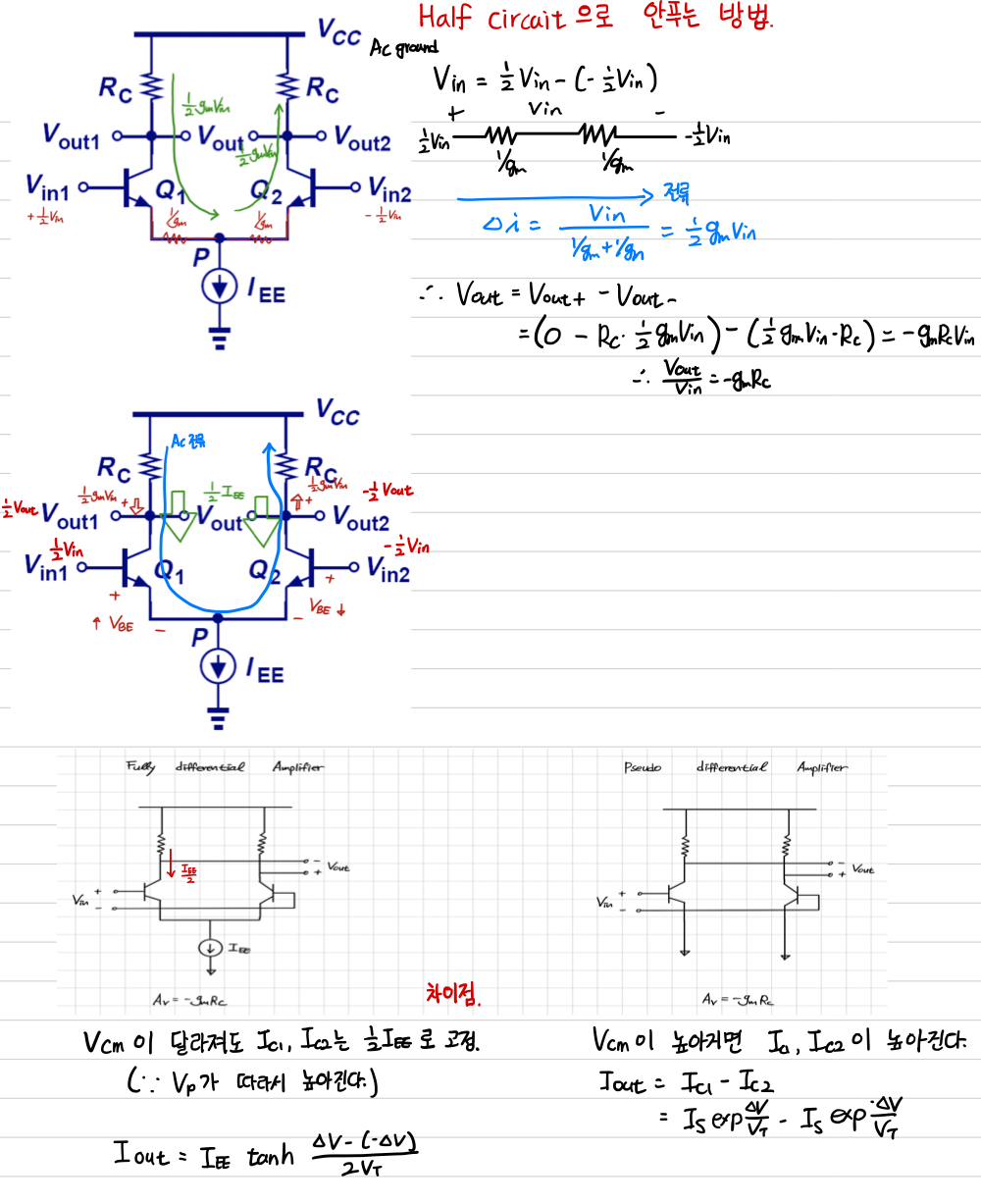

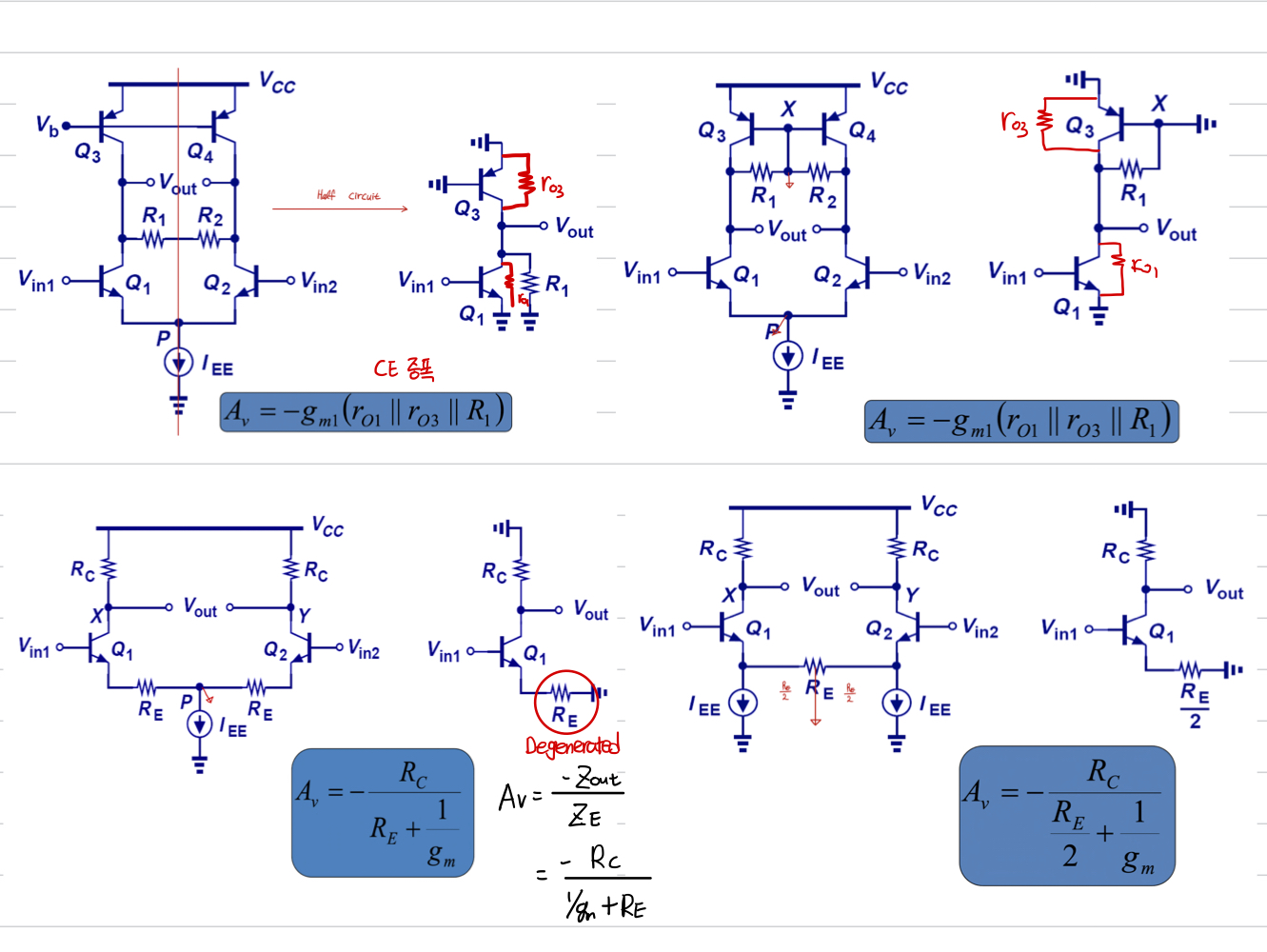

- Half Circuit Example

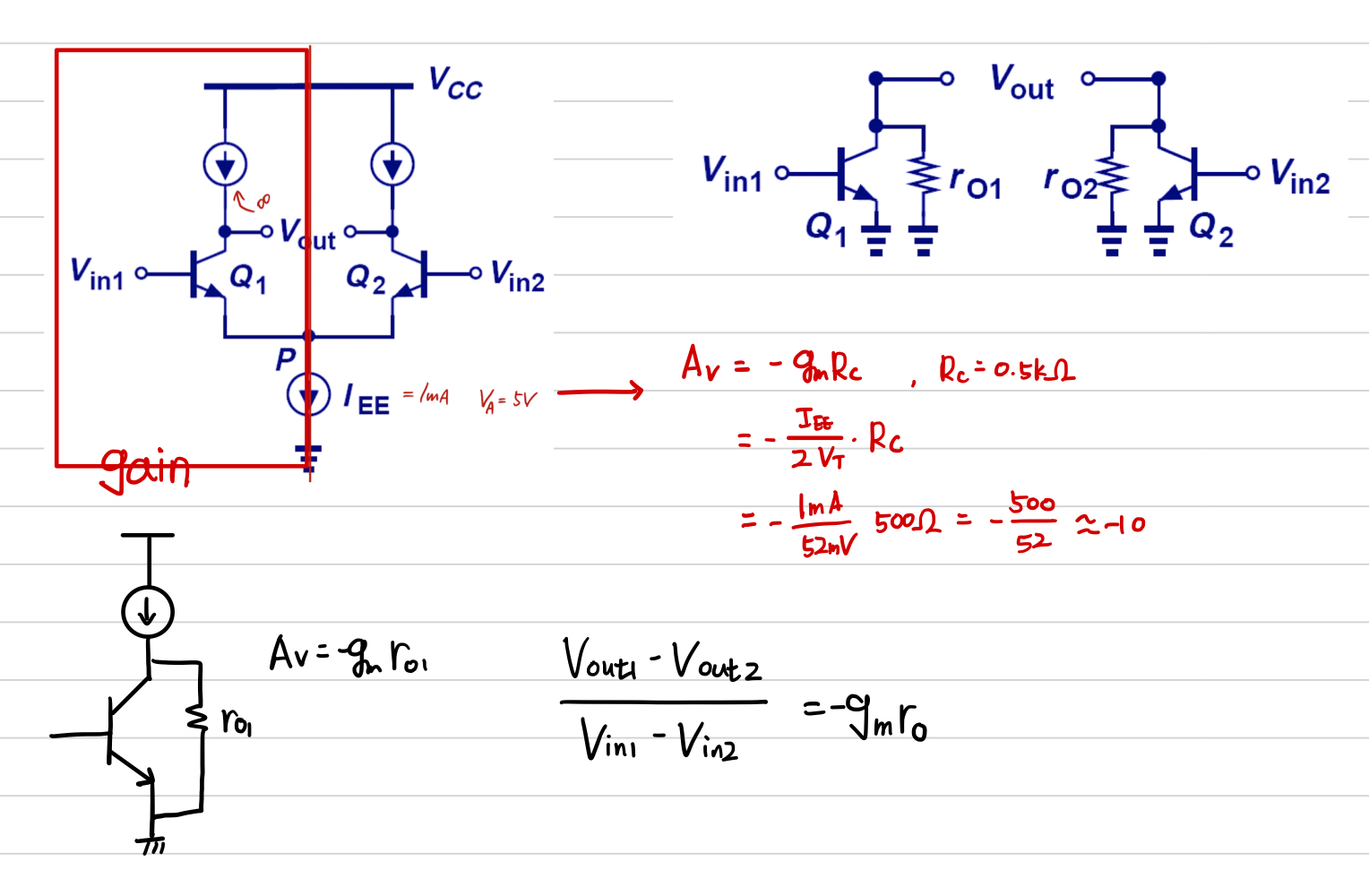

- without half circuit
